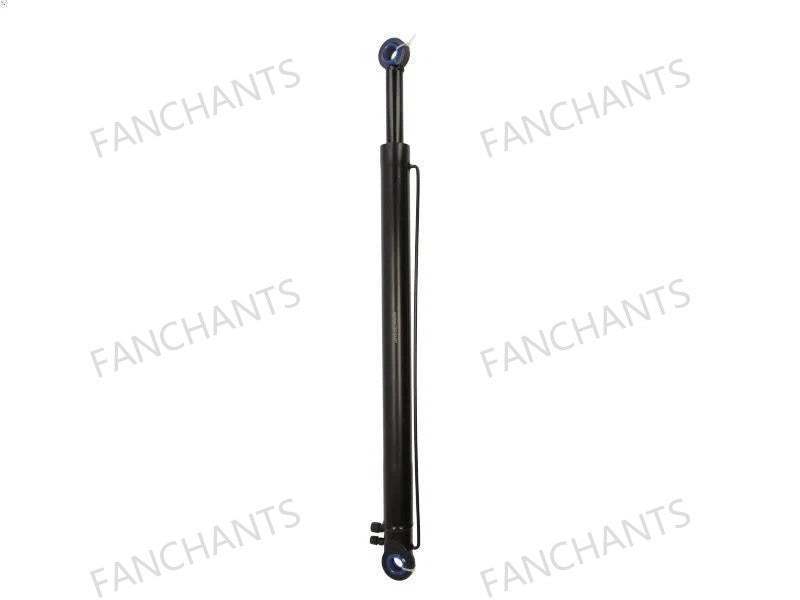

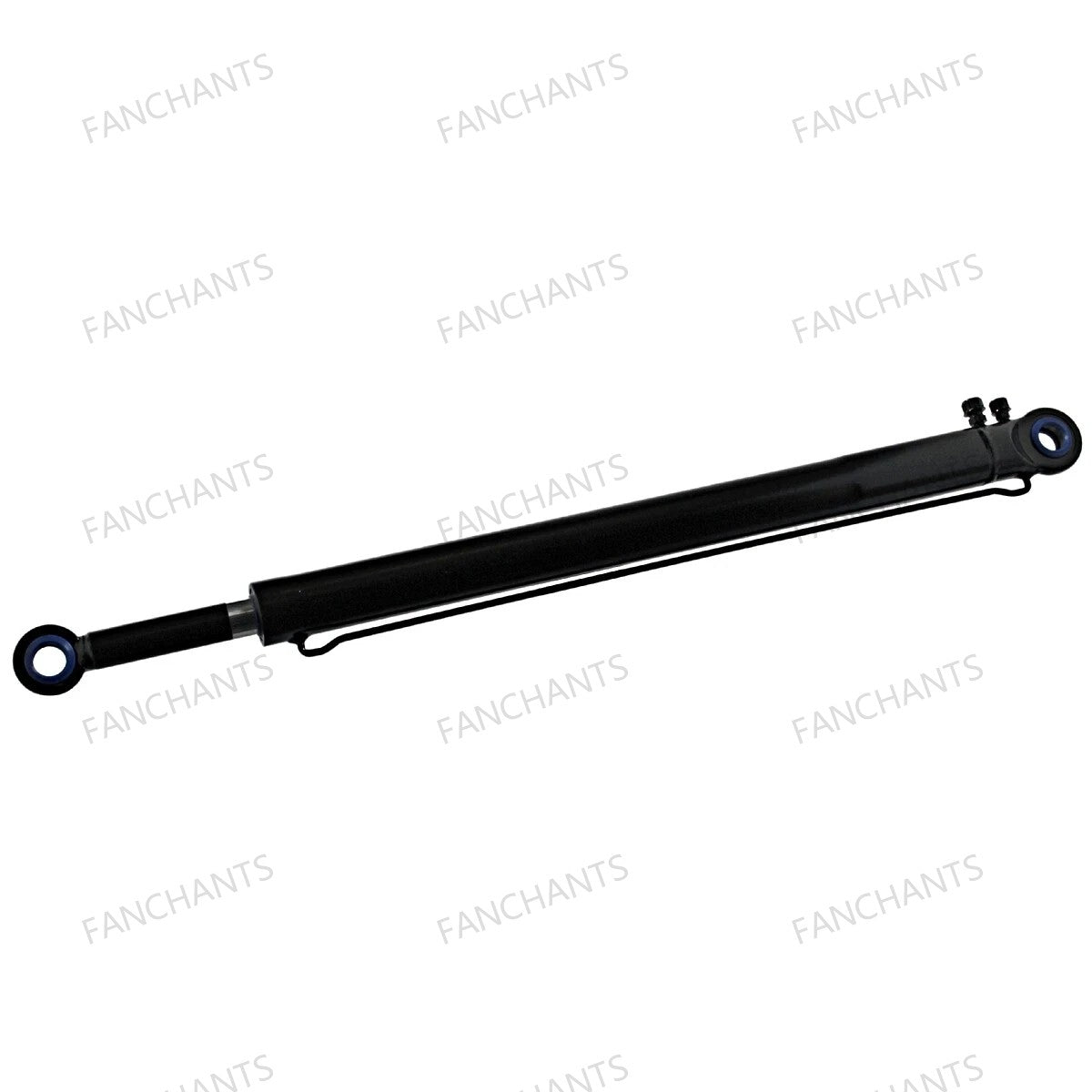

1346200 DAF Cabin Tilt Cylinder | 525mm Hydraulic Actuation

1346200 Cabin Cylinder Heavy-Duty Stabilization System

1346200 tilt cylinder with M14x1.5 threaded ports and 50mm bore 860mm center-to-center mounting for DAF XF series cabs

Precision Engineered Cab Positioning Mechanism

The 1346200 Cabin Cylinder (1308300, 1346200A, 1308300R) utilizes induction-hardened 42CrMo4 steel rods with 525mm±0.3mm stroke repeatability. Dual-port M12x1.5 and M14x1.5 threading enables seamless integration with DIN 3852-A hydraulic systems. Plasma-nitrided piston surfaces maintain ≤0.6μm Ra roughness under 25MPa dynamic loads. Reinforced gland assemblies withstand 22kN side forces in DAF XG 530 cab configurations. Triple-lip PTFE seals (ISO 5597 compliant) achieve <0.25mL/hr leakage rates through 800,000+ compression cycles. Zinc-nickel electroplating provides 2,000hr corrosion protection (ASTM B633 Class Fe/Zn 25). Direct interchange with MAN TGX 680 tilt mechanisms via SAE J1942 adapters. Extended 860mm mounting centers support Euro-VI chassis retrofits.

Multi-Brand Compatibility Profile

Vehicle Fitment

  • ▶ DAF XF 460 FT
  • ▶ CF 95.480
  • ▶ XG 530
  • ▶ LF 55.240

Standards

  • ▶ ISO 6020-2:2028
  • ▶ ECE R55 Rev.16
  • ▶ DIN 24540 Type K

Cross-Reference

  • ▶ Volvo FH 660
  • ▶ Scania R 650
  • ▶ Mercedes Actros
1346200 1308300 1308300A 1308300R 1346200A 1346200R

Design Features

  • ▶ 5-axis machined flanges
  • ▶ Hard-anodized tubes
  • ▶ Anti-wear coatings

Performance Metrics

  • ▶ ±0.18mm positioning
  • ▶ 750k+ load cycles
  • ▶ <0.15% friction loss

Compatible with: 1346200 series, 1308300 variants, DAF XG 530, MAN TGX 680 chassis systems
