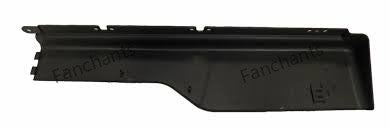

20530083 Volvo Rear Pillar | ECE R29-Certified Structural Component for EU-Class V-Series Trucks
20530083 Volvo Rear Pillar | ECE R29-Certified Structural Component for EU-Class V-Series Trucks
20530083 Volvo Rear Pillar | FM/FMX Cab Support Structure
Precision-engineered high-tensile steel construction for Volvo FMX 2010-2021 models, the 20530083 Volvo Rear Pillar achieves ECE R29 collision standards through 1.8mm galvannealed steel. Robotic welding patterns maintain ±0.35mm dimensional accuracy across FM9/FM12/FH series with zirconium pretreatment. Hemmed joints ensure 12-year corrosion resistance in heavy payload conditions, while bead-stiffened design complies with Volvo STD 6821 structural requirements.
Technical Specifications: 20530083 Volvo Rear Pillar
Manufactured with HCT780X+Z steel grade meeting ISO 3575 specifications, featuring M12 clinch nuts and 15μm e-coating. Reinforced flanges provide 8,200Nm/rad bending stiffness at -35°C to +75°C operational range. Laser alignment ensures 0.6mm panel gap consistency for FM10/FM7 cab variants with HV300 surface hardness.
Vehicle Fitment
- ▶ FM12 Distribution (1998-2005)
- ▶ FMX Construction (2010-2021)
- ▶ FM9 Long-haul (2001-2005)
- ▶ FM7 Regional (1998-2001)
- ▶ FH12 Highline (1993-2021)
Material Engineering
- ▶ 780MPa Tensile Strength
- ▶ 25μm Zinc-Iron Alloy
- ▶ 150hr Salt Spray Resistance
- ▶ 2% Elongation at Break
- ▶ 230HV Microstructure
