Heavy-Duty Tilt Operation System

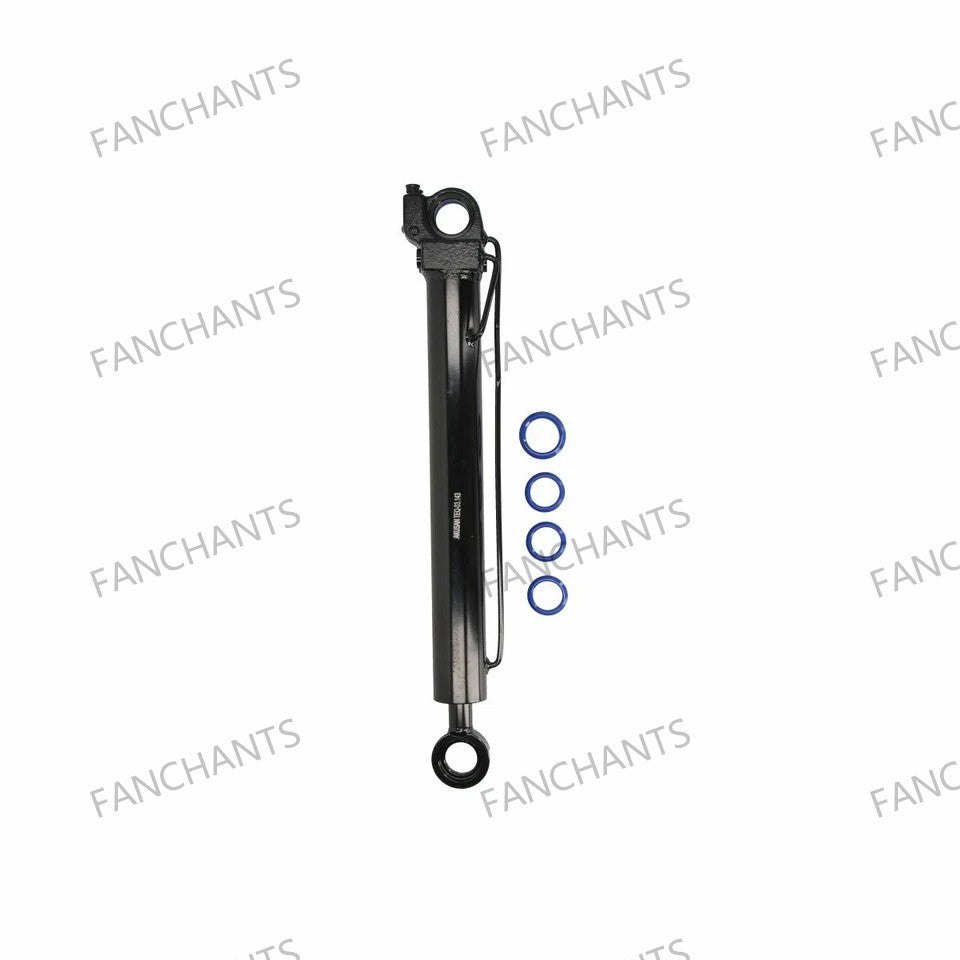

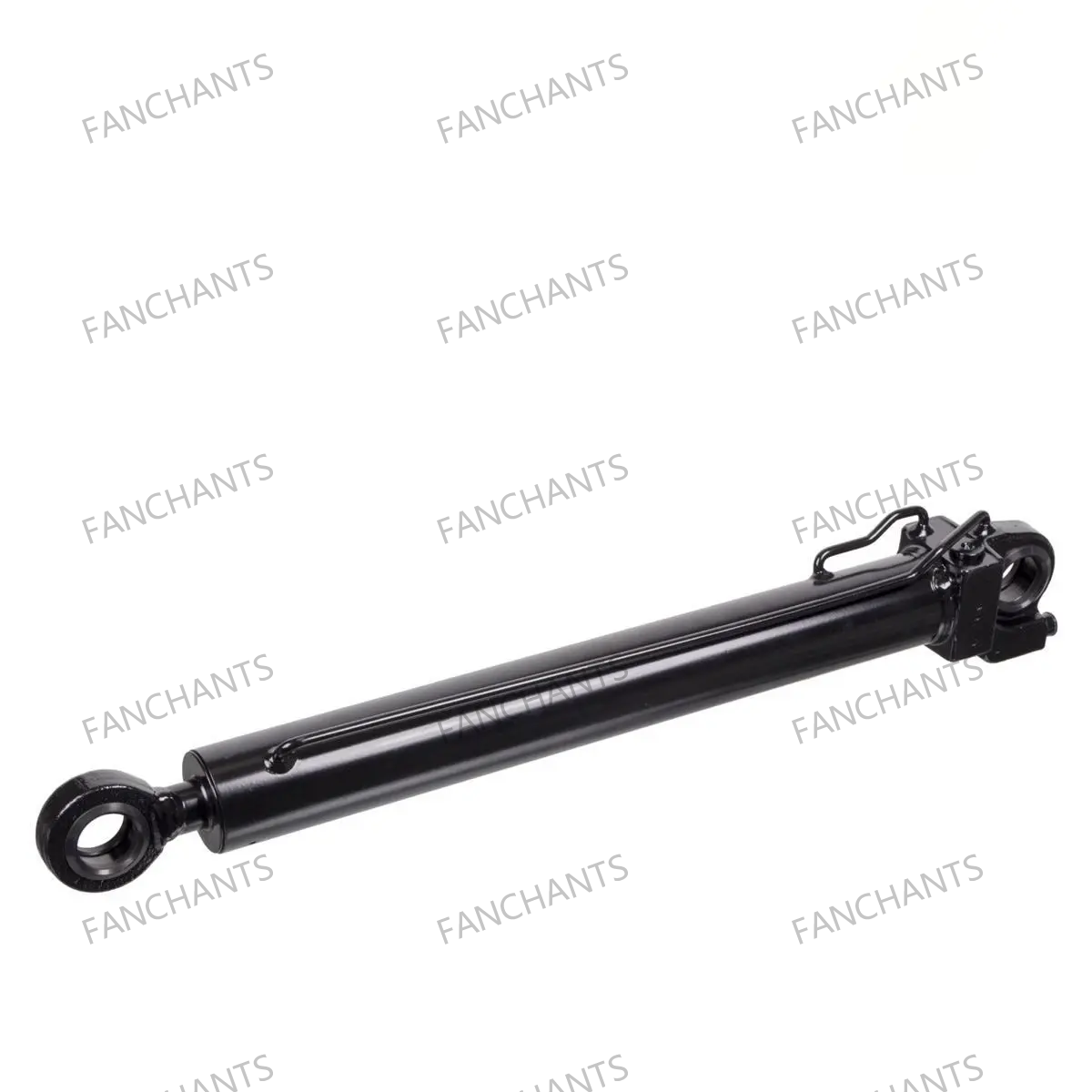

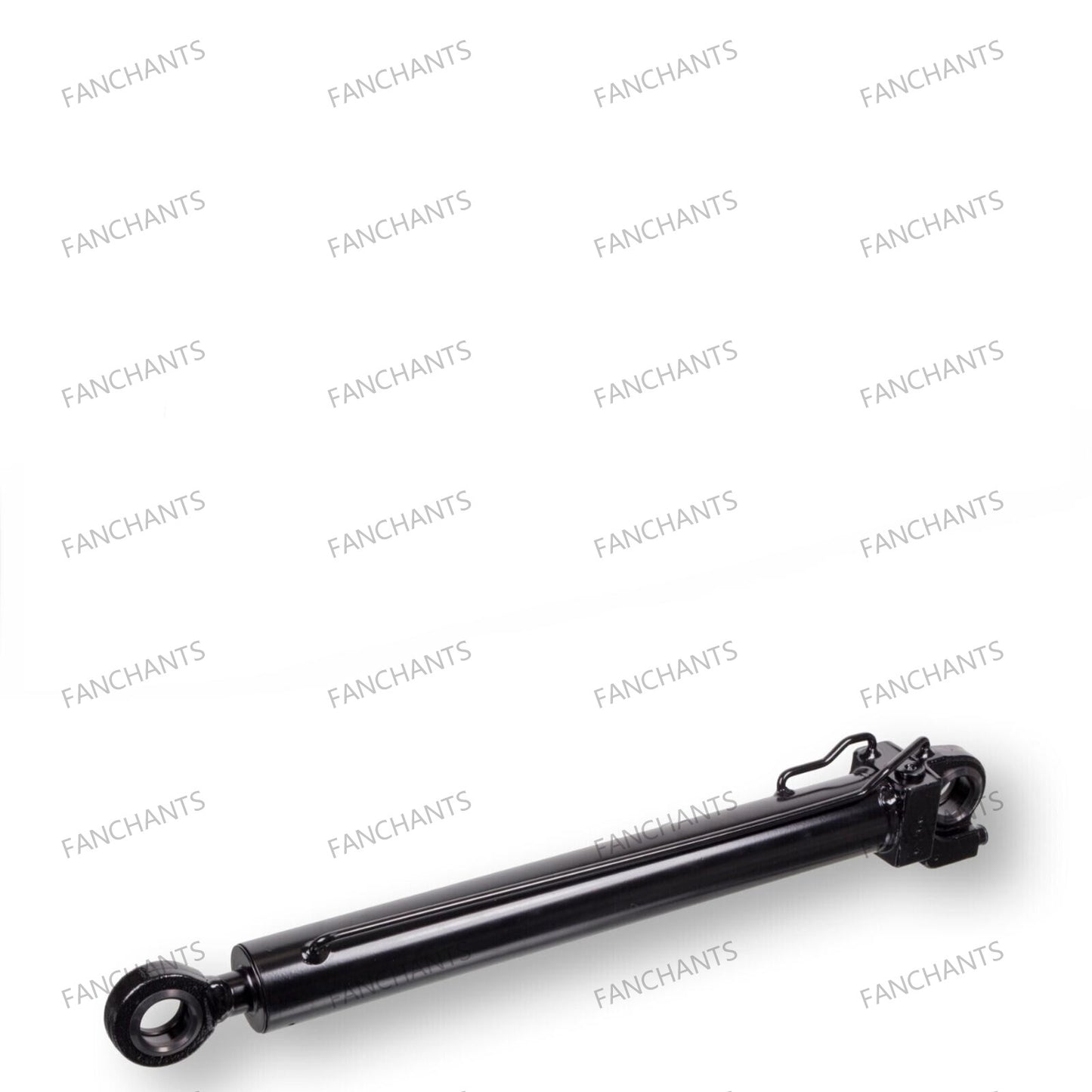

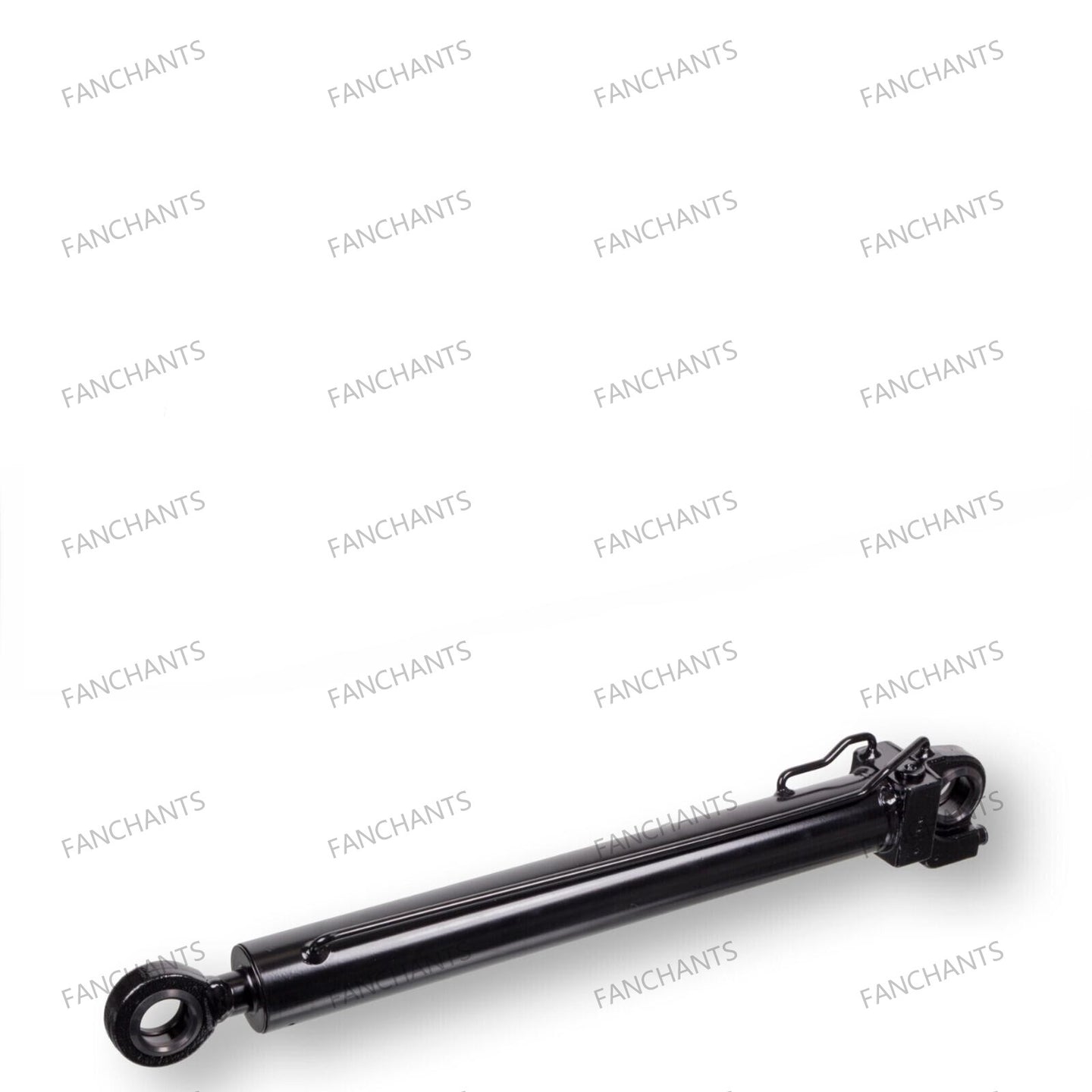

The 22928430 Cabin Cylinder (22928430) incorporates induction-hardened piston rods compatible with 22070285 hydraulic configurations. Precision-ground barrel interiors (54mm ±0.01mm) ensure smooth actuation across 360mm stroke cycles. Multi-stage sealing systems combine triple-lip wipers and reinforced U-cups for particulate exclusion in ±4° angular deflection scenarios. Forged mounting lugs maintain structural integrity under 25MPa dynamic loads. Plasma transferred arc welding creates seamless transitions between 25mm piston diameters and rod eyes. Temperature-adaptive composite bushings compensate for thermal expansion differentials between -40°C and 125°C operational ranges. Modular end caps accept both SAE J518 Code 61 and DIN 24334 porting standards, enabling cross-compatibility with legacy 22928430 systems. Chromium-carbide coated surfaces resist abrasive wear during full-extension cycles while maintaining <2µm surface roughness.

Volvo Cab System Integration
