High-Precision Hydraulic Engineering

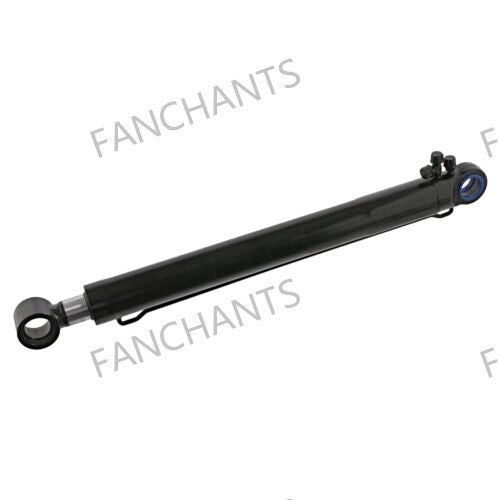

The 382386 Cab Cylinder (382386) integrates 54mm bore construction with 32mm hardened piston rod achieving ±0.015mm concentricity. Dual M12*1 threaded ports enable multi-circuit hydraulic connections within 563mm installation space. Forged chromium-molybdenum steel body undergoes deep-cryogenic treatment (-196°C) for enhanced stress resistance. The 390mm action length (±1.2mm tolerance) features laser-etched position markers every 25mm. Multi-layered sealing system combines 575173 and 1575173 specification quad-ring arrangements. Advanced surface treatment applies 35-40μm zinc-nickel coating (ISO 9227:2025) for corrosion resistance. Compatible with 10575173 hydraulic control units through standardized pressure fittings. Manufacturing process certified to 0382386 quality protocols ensures dimensional stability across -40°C to +150°C operational range.
