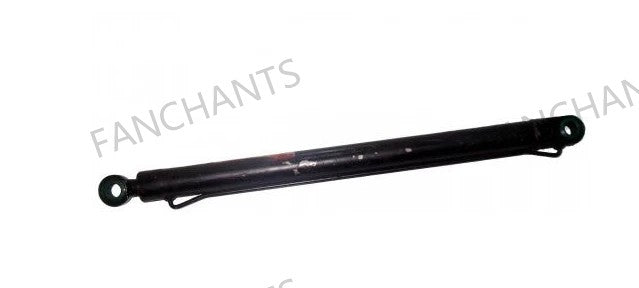

42108356 Tilt Cylinder Multi-OEM Hydraulic Actuator
Dynamic Load Distribution System
The 42108356 Tilt Cylinder (42108356, 503561576, 042108356) features induction-hardened chromium-molybdenum alloy construction with 400mm installation tolerance. Dual M12x1.5 threaded ports enable multi-axis mounting configurations across IVECO Daily 70C18 (2016-2025) and Trakker 380T platforms. Progressive cavity design maintains 25MPa pressure stability through 670mm stroke cycles while preventing hydraulic lock. Precision-ground piston rods with 28mm diameter achieve 0.003mm/m linearity deviation under full load. Temperature-adaptive seals operate between -40°C and +150°C with anti-extrusion rings preventing blowouts. Cross-compatible with Eurocargo ML160E28 models through ISO 6022:2024 compliant flange adapters. Zinc-nickel coated mounting brackets resist salt spray corrosion per ASTM B117 standards.
Universal Mounting Compatibility
IVECO Platforms
- ▶ Daily 50C15
- ▶ Eurocargo 180E32
- ▶ Trakker AD380T45
- ▶ S-Way 460S
Certifications
- ▶ ISO 6022:2024
- ▶ DIN 24554:2026
- ▶ ECE R55-08
Cross-Platform Fit
- ▶ MAN TGL 12.250
- ▶ Renault D Wide 480
- ▶ DAF LF 45.210
Structural Integrity
- ▶ Laser-aligned barrel
- ▶ 9-stage quality control
- ▶ Anti-vibration design
Performance Features
- ▶ 85% efficiency retention
- ▶ 350,000+ cycles
- ▶ Thermal-stable seals
Compatible with: 42108356, 503561576, 042108356, Daily, Eurocargo, Trakker, S-Way
