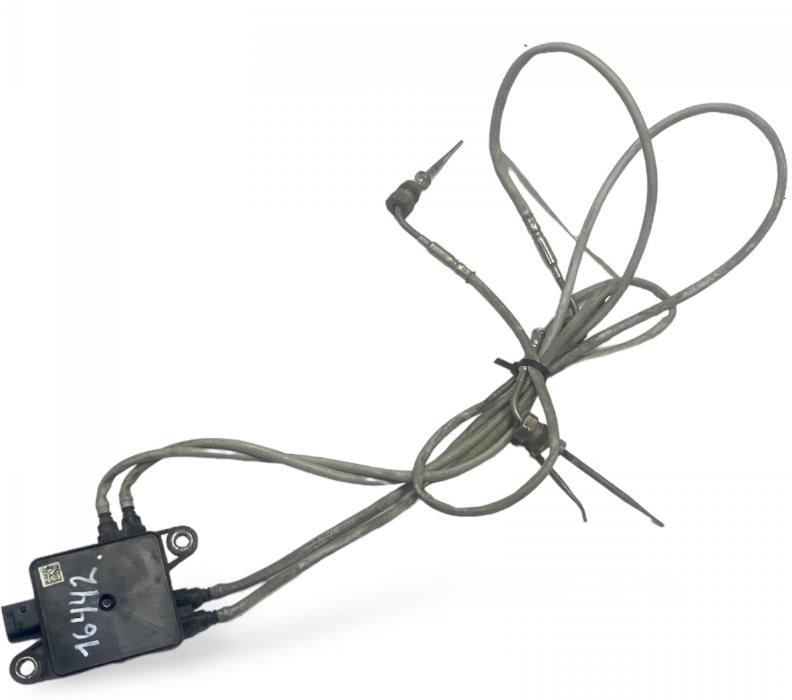

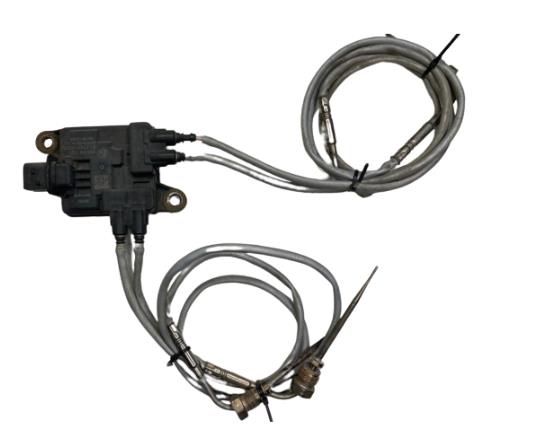

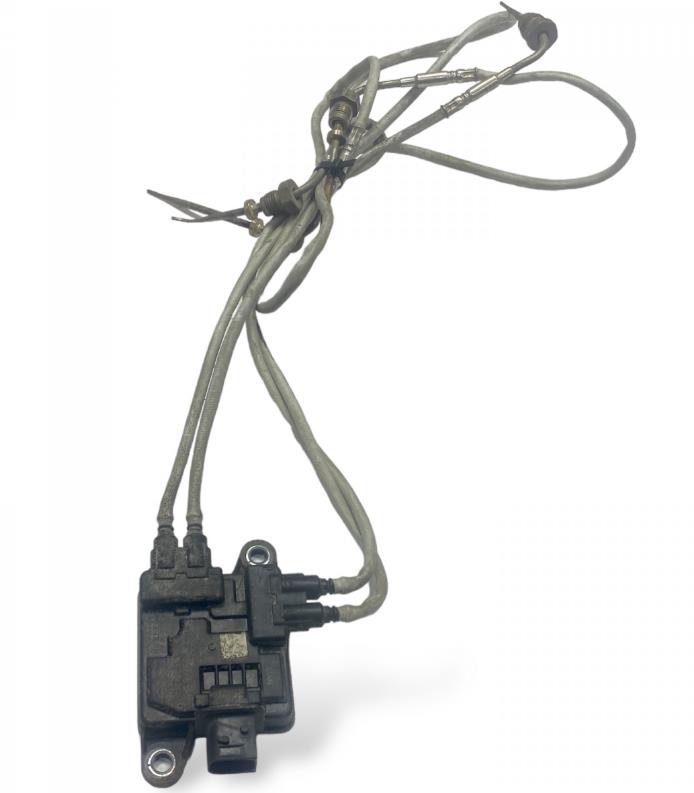

EXHAUST AFTER-TREATMENT COMPONENT 51274210293 MAN EGT Sensor
Designed for MAN D2676 LF25 engines in TGL/TGM/TGS/TGX trucks (2005-2021), the 51274210293 MAN EGT Sensor monitors SCR system temperatures with magnesium oxide insulation. Features M14x1.5 tapered threads and Inconel 600 sheath for DOC mounting positions. Triple-shielded cabling prevents signal distortion near ZF AS-Tronic transmissions.
Complies with ISO 11898-2 protocols using nickel-plated contacts. IP69K-rated housing ensures high-pressure wash resistance. Validated against OE 51.27421-0293/51274210310 through thermal cycling validation.
HEAVY-DUTY PERFORMANCE DATA
- ▶ Probe diameter: 6mm
- ▶ Thread length: 28mm
- ▶ Temp range: -40°C~1000°C
- ▶ Response time: τ<150ms
- ▶ Shock resistance: 50g
- ▶ Cable length: 1.8m
- ▶ Accuracy class: Class A
- ▶ Sealing type</span">: Crush washer
TRUCK PLATFORM INTEGRATION
Direct replacement for 51274210293 and 51.27421-0310 in MAN D2676/D2066 engines. Compatible with 2005-2021 TGL/TGM/TGS/TGX series. Connector system matches Continental VDO 4-pin. Mounting specifications align with MAN EfficientLine 2 architecture. Signal protocol compatible with MAN CATS diagnostics.
