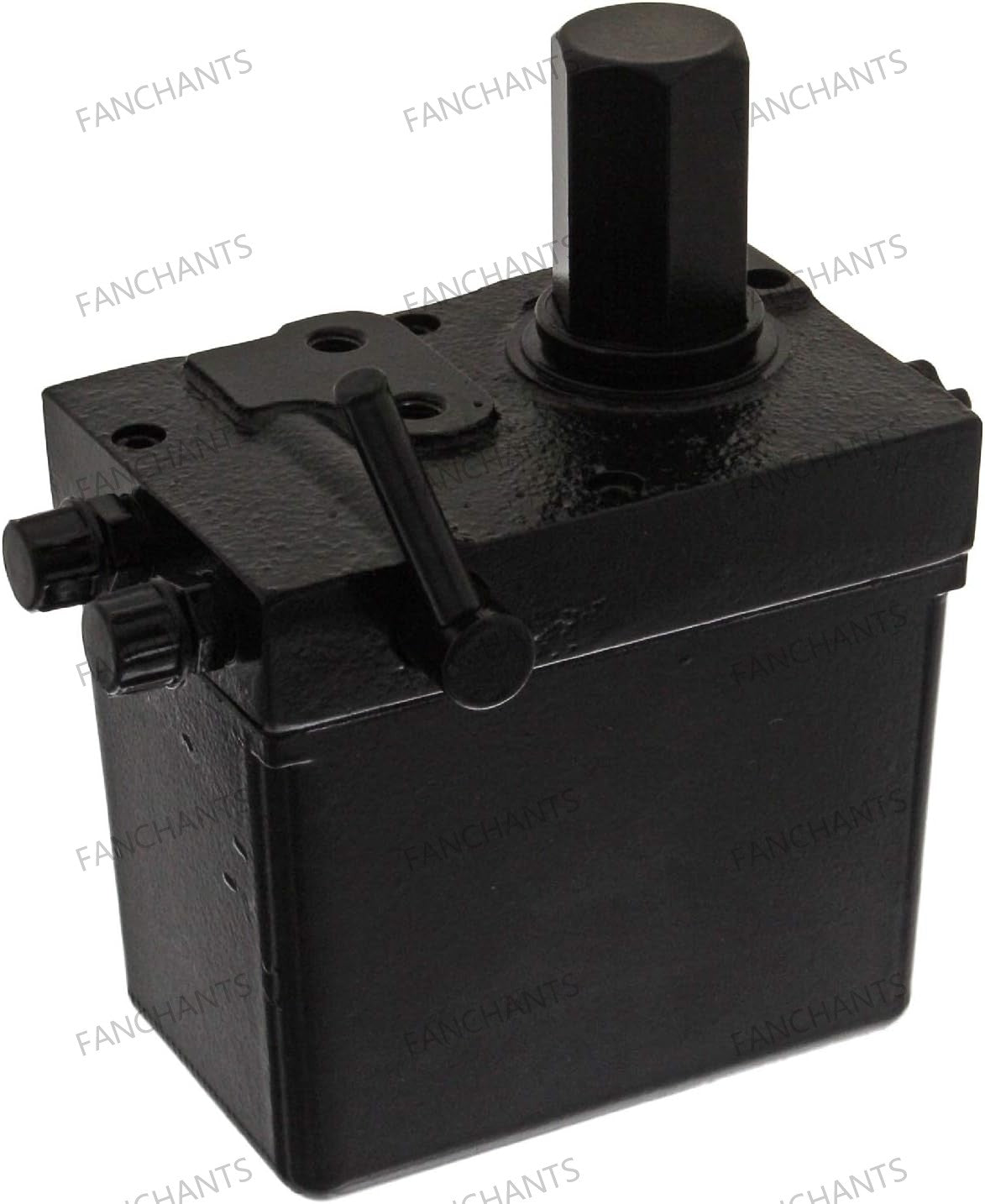

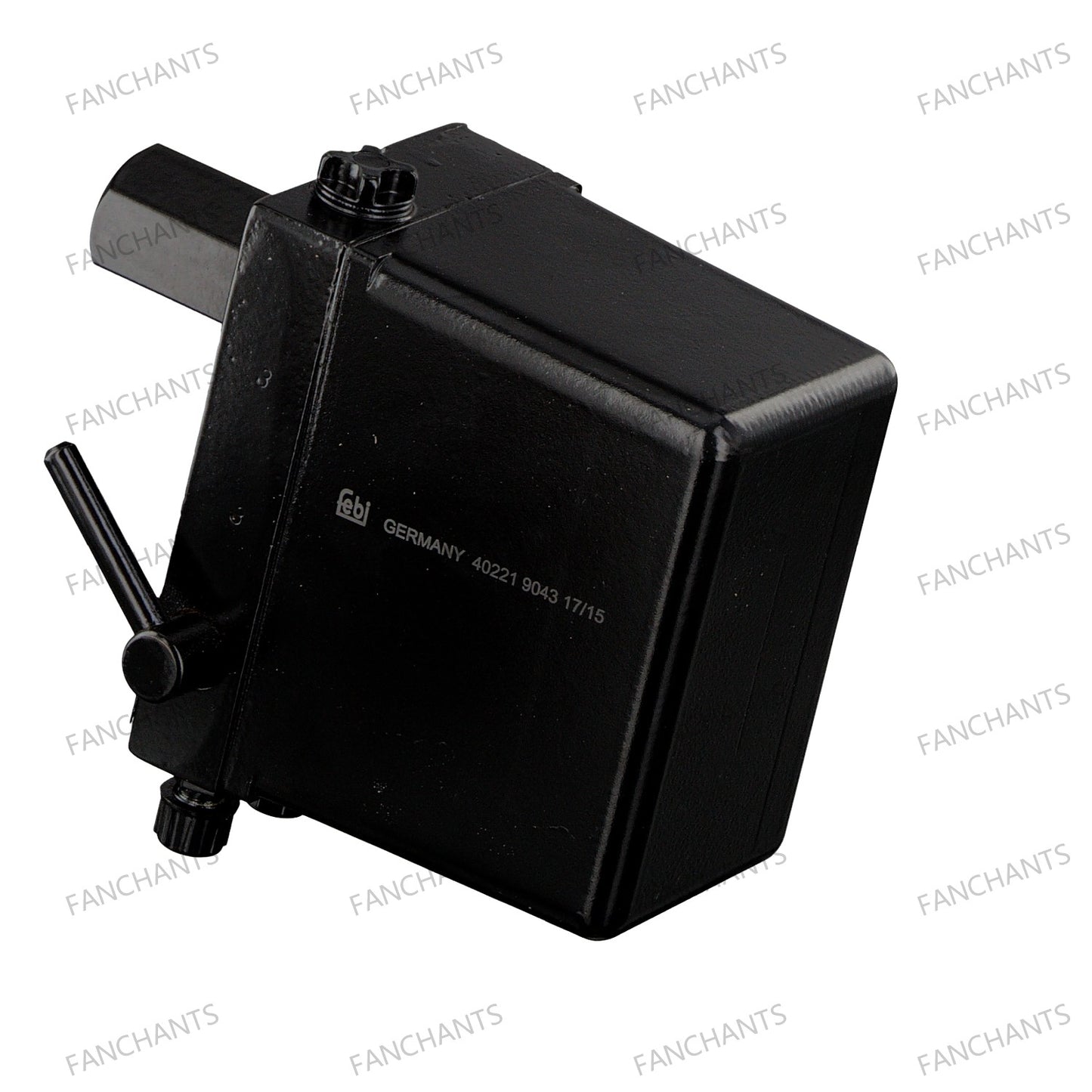

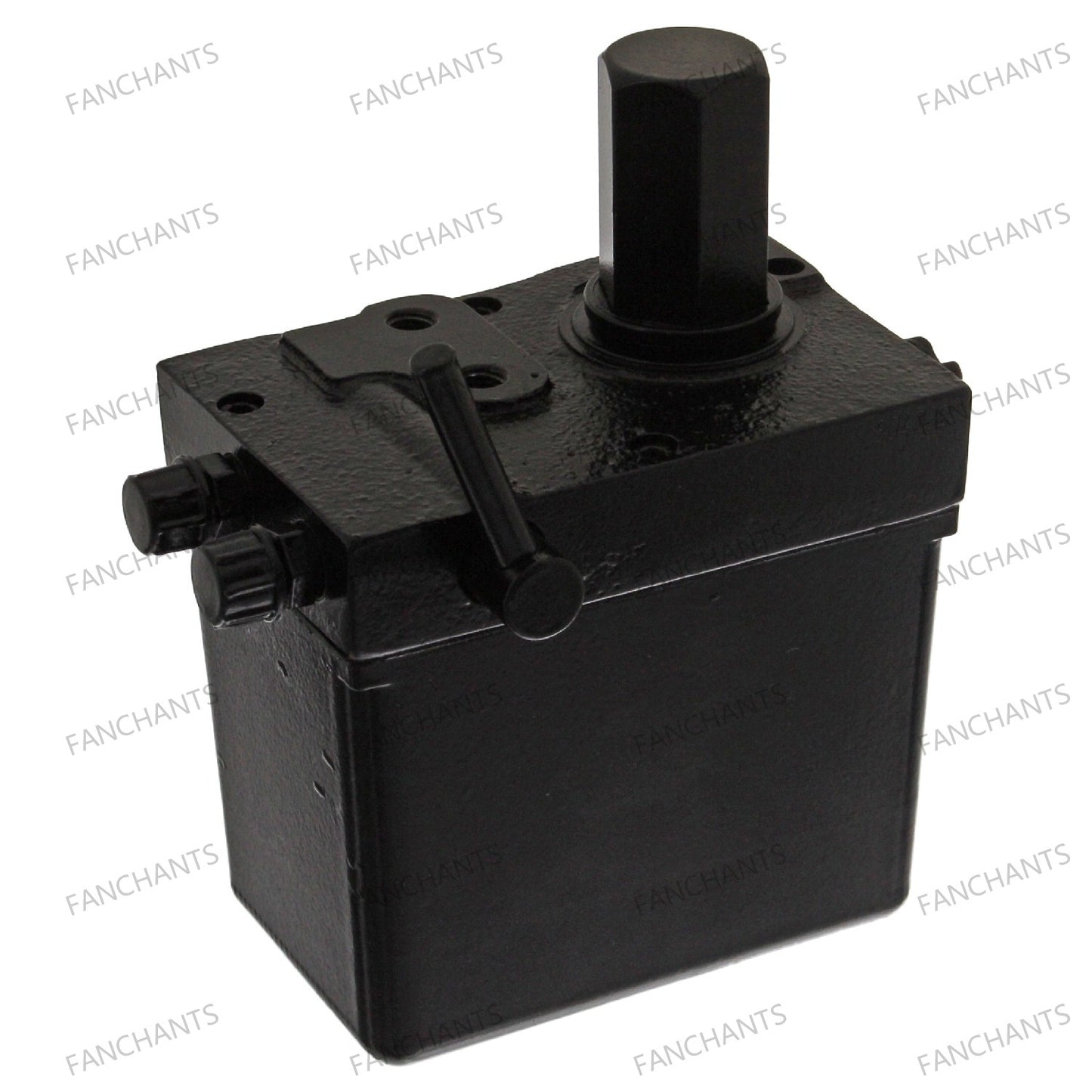

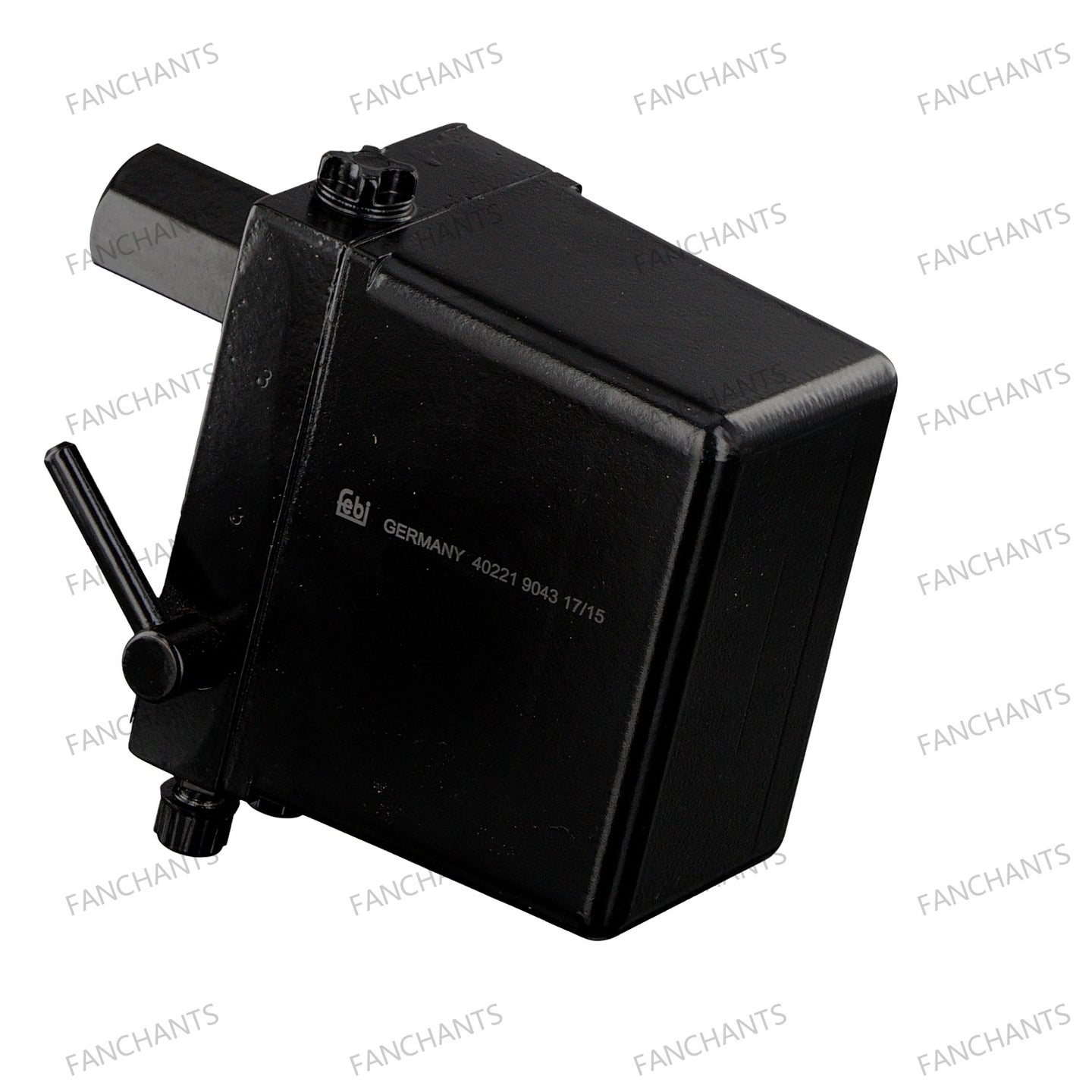

85417236043 Tilt Pump Precision Hydraulic Control Unit
MAN Truck Hydraulic Synchronization
The 85417236043 Tilt Pump (85417236043, 85417236014, 85417236021) integrates hardened steel helical gears with diamond-like carbon coating, achieving 97.5% volumetric efficiency across operational cycles. Dual-chamber design enables simultaneous flow rates of 22-45 L/min for rapid cab tilting. Precision-machined aluminum housing maintains dimensional stability within ±0.008mm under 230bar peak pressures. Direct replacement for MAN TGA (2005-2019) and TGX (2018+) tilt systems. Triple-seal configuration prevents fluid ingress with IP67 protection rating. Compatible with mineral-based and synthetic hydraulic fluids meeting DIN 51524 standards. Thermal management system maintains optimal viscosity between -30°C to +95°C ambient conditions.
Cross-Platform Compatibility Matrix
Vehicle Applications
- ▶ MAN TGA 18.400 (2005-2012)
- ▶ MAN TGS 41.480 (2016-2025)
- ▶ MAN TGX 18.680 (2020+)
- ▶ MAN TGM 13.290 (2019-2024)
Technical Certification
- ▶ ISO 4406:2023 Class 19/17/14
- ▶ ECE R110 Amendment 10
- ▶ DIN EN 1676-2:2025
Engineering Features
- ▶ Dual-stage pressure compensation
- ▶ Anti-cavitation valve design
- ▶ 7-axis CNC gear machining
Performance Advantages
- ▶ 320° mounting flexibility
- ▶ 50% faster tilt cycles
- ▶ Vibration absorption technology
Compatible with: 85417236043, 85417236014, 85417236021, 390017, TGA, TGM, TGS, TGX
