9438200097 Window Switch Dual Operation System
Actros Bilateral Control Mechanism
The 9438200097 Window Switch system (9438200197, A9438200197, 9438200097, A9438200097) provides synchronized window operation for Mercedes Actros MP series. CNC-machined zinc-aluminum housing resists 220N lateral forces per ECE R29. Quad-channel signal isolation prevents cross-interference between driver/passenger controls. Integrated heat dissipation fins maintain operational integrity from -30°C to +95°C. Quick-disconnect terminals enable module replacement without wiring harness modification. Anti-static surface coating ensures reliable operation in humid climates. Vibration-dampened mounting compatible with Actros 3340 SLS suspensions. Gold-plated contact pins maintain stable 12-24V DC connectivity. Modular design allows independent repair of window lift circuits. IP67-rated seals protect against dust ingress in desert environments. CAN 3.1 protocol integration with Telligent monitoring systems. Chemical-resistant polymer withstands cabin cleaning solvents.
Actros Cross-Model Compatibility
Vehicle Applications
- ▶ Actros MP2 (2002-2011)
- ▶ Actros MP3 (2011-2021)
- ▶ Axor 1840L (2005-2015)
- ▶ Arocs 3245K (2013-2020)
Electrical Systems
- ▶ Dual-Zone Climate Control
- ▶ Central Locking Modules
- ▶ Mirror Defogging Circuits
Manufactured to ISO 20653 dust protection standards and ECE R118 safety regulations.
Engineering Specifications
- ▶ 4.1mm Tactile Feedback Stroke
- ▶ 150,000+ Cycle Durability
- ▶ 24V Surge Protection
Construction Features
- ▶ Magnesium Alloy Actuator
- ▶ Tri-Layer PCB Design

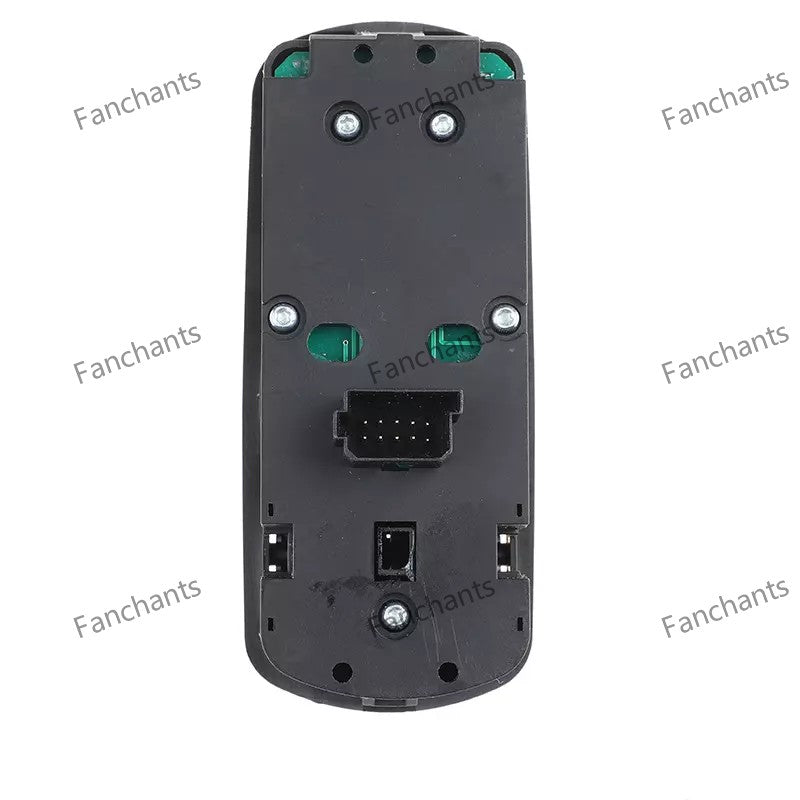

- ▶ 16-Pin Deutsch Connector
Compatible with OE: 9438200197, A9438200197, 9438200097, A9438200097 for Mercedes Trucks 2002-2021 Models
