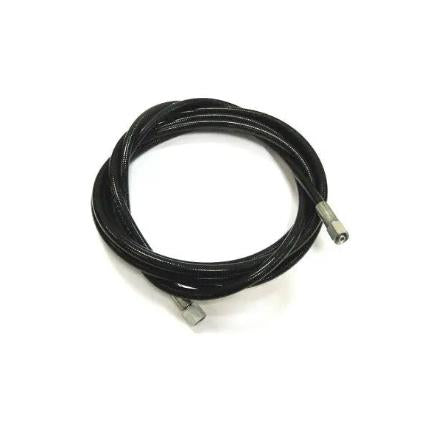

Critical hydraulic line component for MAN truck cab tilting systems in 2000-2006 EU models. The 06540990100 assembly features four-layer steel braid construction designed for 4500 PSI operating pressure. Maintains precise fluid transfer efficiency across TGA/TGS chassis configurations with D08/D20 series engines.

Engineered with 30° pre-formed bends matching OEM routing specifications. Includes M14x1.5 swivel fittings with dual sealing surfaces for leak-free connections. Compatible with standard hydraulic quick-disconnect systems in Euro III/IV emissions platforms.

Performance Parameters

• ▶ 650±10mm length
• ▶ 12mm ID/19mm OD
• ▶ 250 Bar working pressure
• ▶ EN 853 2SN standard
• ▶ SAE J517 compliance
• ▶ -40°C to +120°C range

Features abrasion-resistant cover with 2mm wall thickness and zinc alloy fittings.

Validated for MAN TGA 18.400 and TGS 33.480 models with dual-circuit hydraulic systems. Maintains original equipment flow rates in cab tilting operations using HLP 46 hydraulic fluid. Direct replacement for parallel circuit configurations.
