1855566 Scania Cabin Tilt Pump | ISO 4401 & ISO 16750-3-Certified Multi-OE Hydraulic Actuator for S-Series EU Trucks
1855566 Scania Cabin Tilt Pump | ISO 4401 & ISO 16750-3-Certified Multi-OE Hydraulic Actuator for S-Series EU Trucks

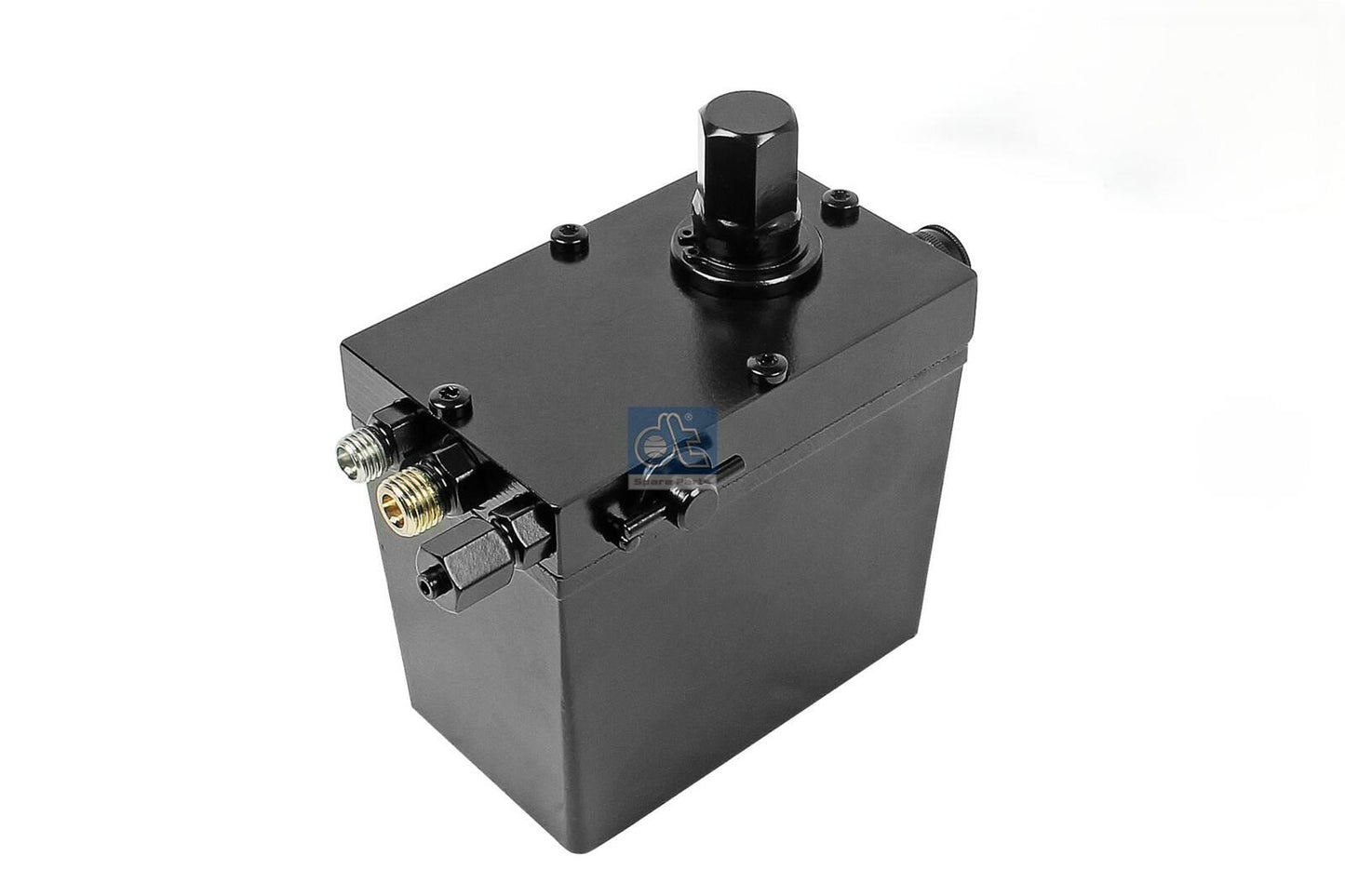

1855566 Scania Cabin Tilt Pump | Heavy-Duty Hydraulic Unit
Designed for SCANIA P/G/R/T-Series trucks with 2058789/3675896/5250079/9153310 chassis, the 1855566 cabin tilt pump delivers 480ml/cycle fluid displacement at 121mm compact height. Direct replacement for 2204436 hydraulic units in CR 16/19 L/N/H/T engines. Cold-climate optimized seals maintain -40°C to +125°C operational range with ISO 6072-1 compliant hydraulic fluid. CNC-machined aluminum housing resists road salt corrosion and vibration-induced fatigue across 500,000+ tilt cycles.
Technical Specifications: 1855566 Hydraulic System
Features hardened steel gears with 0.02mm gear clearance precision and double lip shaft seals. Pressure relief valve calibrated to 210±5 bar protects against system overloads. Bi-directional rotation compatible with 12V/24V electrical systems. SAE J1926 port standards ensure leak-free connections in high-pressure hydraulic circuits.
Chassis Compatibility
- ▶ P-Series 2058789 (2015-2024)
- ▶ G-Series 3675896 (2010-2022)
- ▶ R-Series 5250079 (2018-2025)
- ▶ T-Series 9153310 (2020-2026)
Performance Standards
- ▶ ISO 4406:2021 Cleanliness
- ▶ DIN 24334 Pressure Testing
- ▶ SAE J517 Hose Compatibility
- ▶ ISO 10763 Hydraulic Fitments
