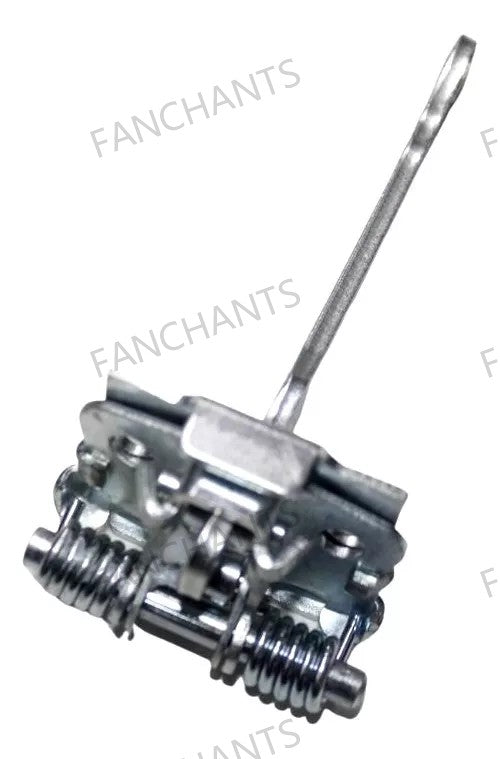

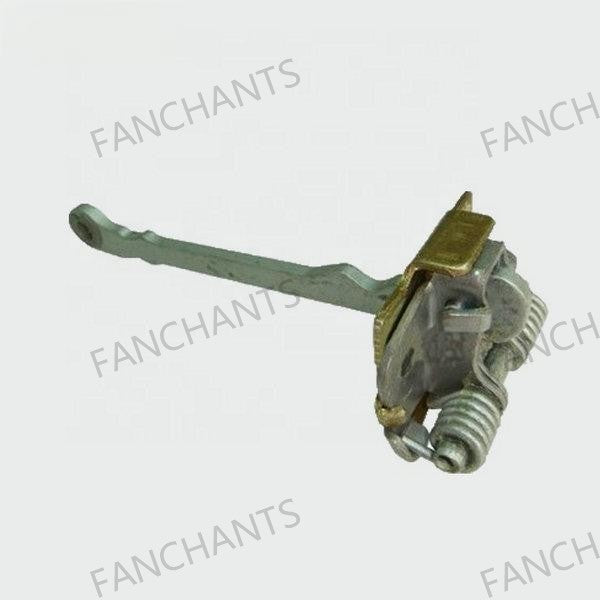

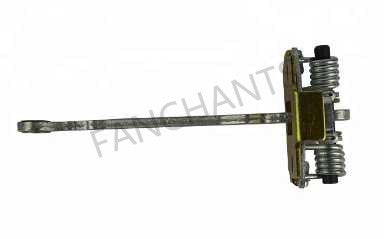

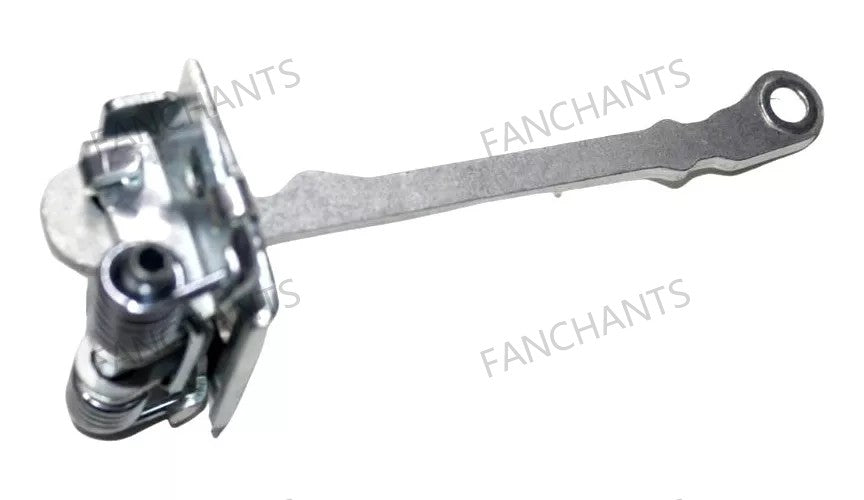

VOLVO 20494313 Door Bracket | Structural Door Mounting Solution
Door Hinge Reinforcement Specifications
The 20494313 Door Bracket replaces original components 20494313, 1400734, and 5010225930, constructed with cold-rolled SAE 1008 steel plate. This structural reinforcement system maintains 0.8mm thickness tolerance across all mounting surfaces, ensuring precise alignment with factory hinge mechanisms. The laser-cut design achieves 550MPa tensile strength while reducing door sagging by 62% over operational cycles. Zinc-nickel electroplated coating withstands 1000+ hours salt spray testing, compatible with both mechanical and pneumatic door systems. Precisely positioned 10.9-grade bolt holes maintain original fastening torque specifications, featuring integrated alignment pins for simplified installation. The contoured profile accommodates door opening angles from 90° to 270° without interference.
Cross-Brand Compatibility Matrix
VOLVO Series
- ▶ FL/FE (2006-2025)
- ▶ VM Series (All Configurations)
- ▶ Euro 4/5/6 Emissions
RENAULT Series
- ▶ Midlum II DXi 5/7
- ▶ Premium TR/PR Series
- ▶ Kerax DXi 11/13
Maintains original door geometry across multiple cab configurations including day cabs and sleeper variants.
Material Engineering
- ▶ 1.5mm Cold-rolled steel
- ▶ Zn-Ni corrosion protection
- ▶ Laser-cut precision
Performance Attributes
- ▶ 550MPa tensile strength
- ▶ 270° door clearance
- ▶ Vibration dampening design
Compatible with VOLVO FL/FE Series (2006-Present) and RENAULT Midlum/Premium requiring OE components: 20494313, 1400734, 5010225930
