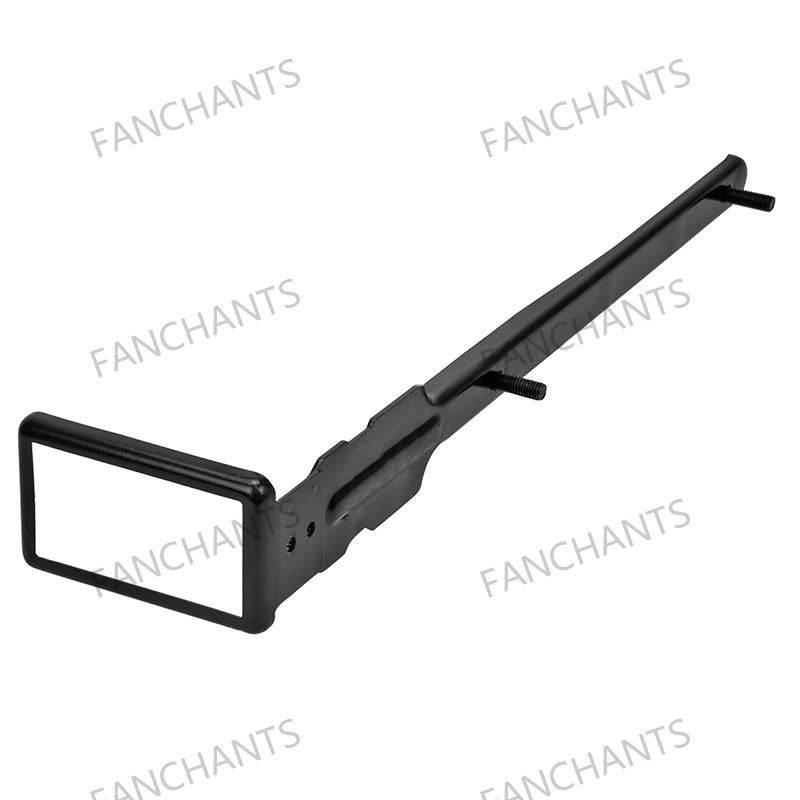

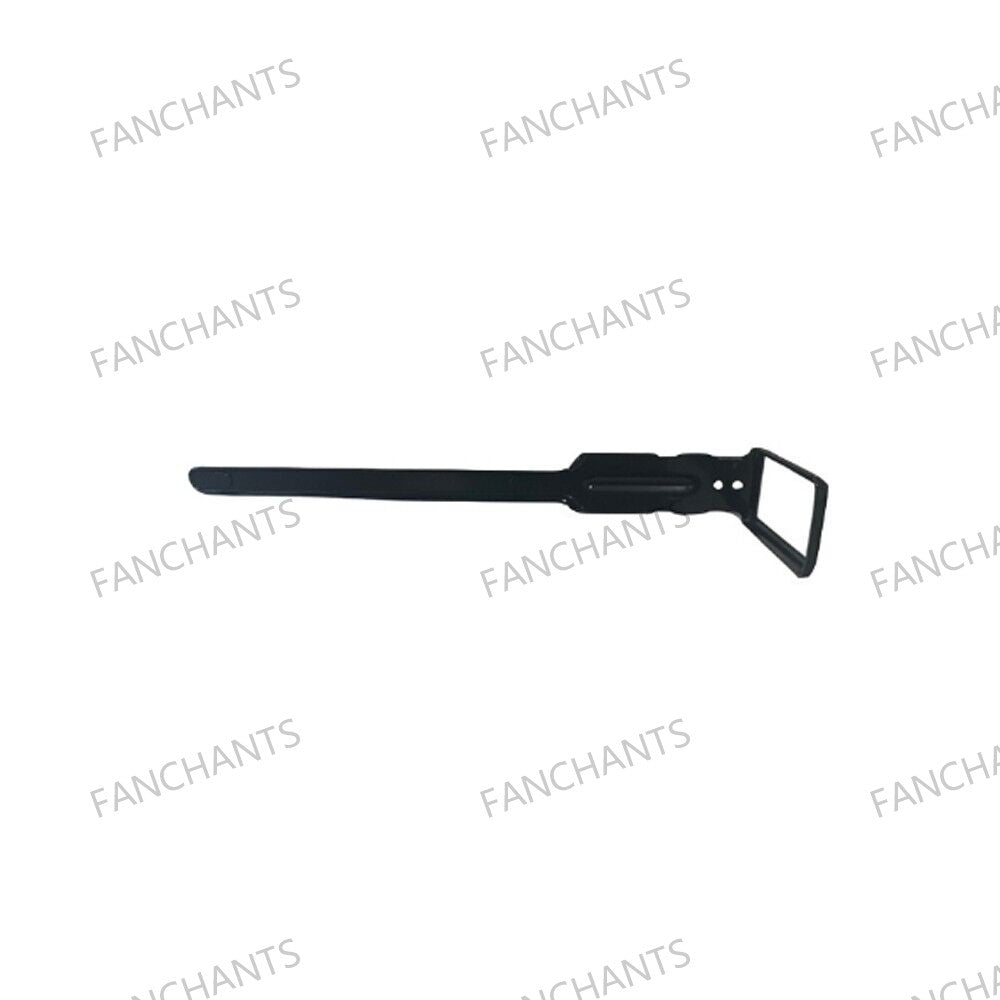

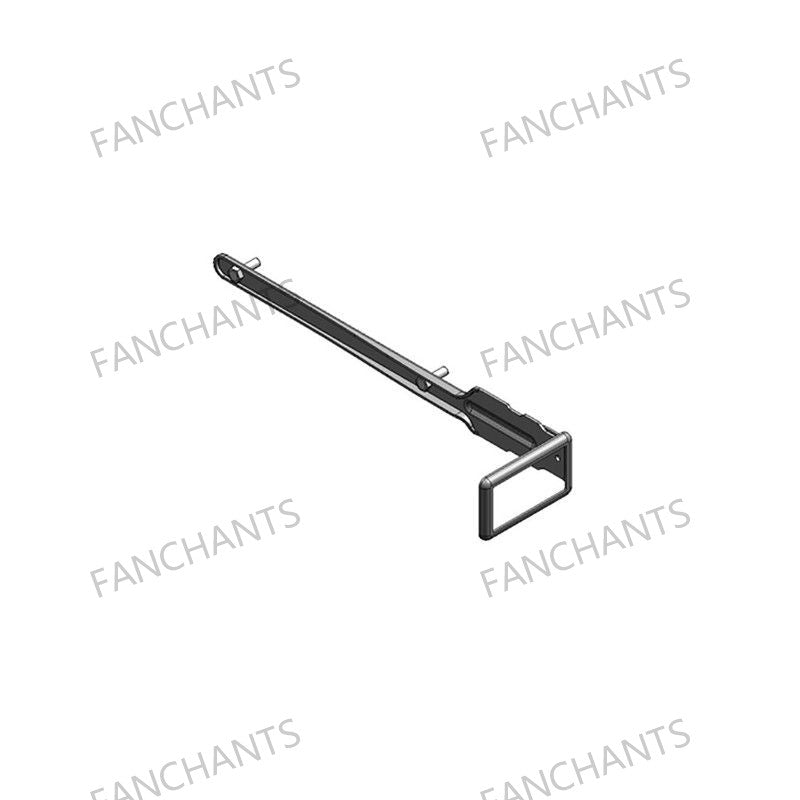

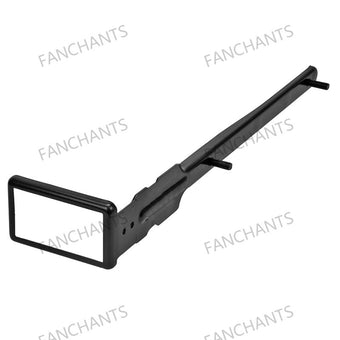

VOLVO 21094409 Bracket | Structural Mounting Hardware
Chassis Mounting System Engineering
The 21094409 Bracket precisely replicates VOLVO OEM specification 21094409. Fabricated from hot-dip galvanized S550MC steel, this structural component maintains ±0.3mm dimensional accuracy across all 12mm bolt holes. Triple-layer zinc-aluminum coating provides 2,500+ hours salt spray protection, engineered for 1993-2021 model year FH/FM/FMX/NH series trucks. The reinforced rib design distributes 22kN static loads while compensating for ±1.5mm chassis flex, with laser-cut alignment slots ensuring perfect component positioning.
Cross-Platform Compatibility Matrix
- ▶ FH12/FH16 (1993-2021)
- ▶ FM7/FM9/FM10 (1998-2005)
- ▶ FMX Series (2010-2021)
- ▶ NH Models (1999-2006)
- ▶ Euro III-VI Configurations
- ▶ Day/Cab Sleeper Models
Maintains original 4.8kg ±3% mass specifications and M16x2.0 hardware requirements.
Material Specifications
- ▶ 6mm structural steel plate
- ▶ ISO 4957 HX420LAD steel
- ▶ 80μm zinc-aluminum coating
Design Features
- ▶ Laser-cut mounting points
- ▶ Stress-relief notches
- ▶ Anti-corrosion treatment
Compatible with VOLVO commercial vehicles requiring OE component: 21094409
