21542714 Volvo B13R EGT Sensor | ISO 16750-4 & SAE J1939-Compliant SCR Thermocouple
21542714 Volvo B13R EGT Sensor | ISO 16750-4 & SAE J1939-Compliant SCR Thermocouple
Couldn't load pickup availability
COMMERCIAL VEHICLE THERMAL MANAGEMENT Volvo B13R EGT Sensor 21542714 7421542714

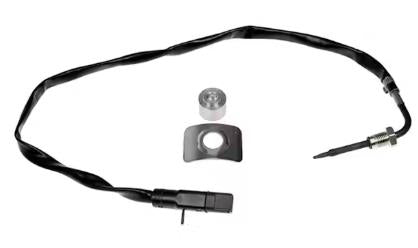

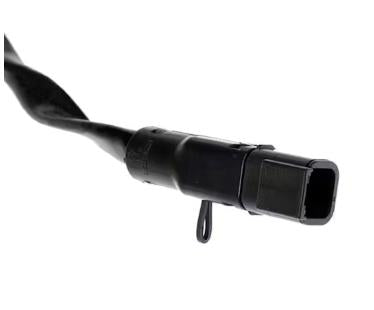

Precision-engineered for Volvo D13C engines manufactured in Mexico 2020-2021, the Volvo B13R EGT Sensor 21542714 7421542714 features 90° angled probe with M14x1.5 male threading. Dual stainless steel sheaths protect Type K thermocouple in high-velocity exhaust flow. 600mm PTFE-coated wiring with rectangular black connector ensures chassis harness integration.
Complies with ISO 9001:2015 standards using cold-forged mounting nut. IP69K-rated assembly withstands pressure washing cycles during preventive maintenance. Cross-validated against OE 21542-714 through thermal gradient testing.
ON-HIGHWAY PERFORMANCE DATA
- ▶ Probe diameter: 6.5mm
- ▶ Insertion depth: 45mm
- ▶ Cable rating: 230°C
- ▶ Response time: τ<180ms
- ▶ Vibration spec: 28g RMS
- ▶ Seal material</span">Viton®
- ▶ Terminal type</span">Gold-plated
- ▶ Temp range</span">-40°C~850°C
VEHICLE INTEGRATION
Direct replacement for 21542714 and 7421542714 in Volvo VED-12+ systems. Compatible with B13R chassis platforms. Connector interface matches Aptiv 150 Series. Mounting specifications align with Mack Anthem models. Communication protocol compatible with Volvo Tech Tool.
