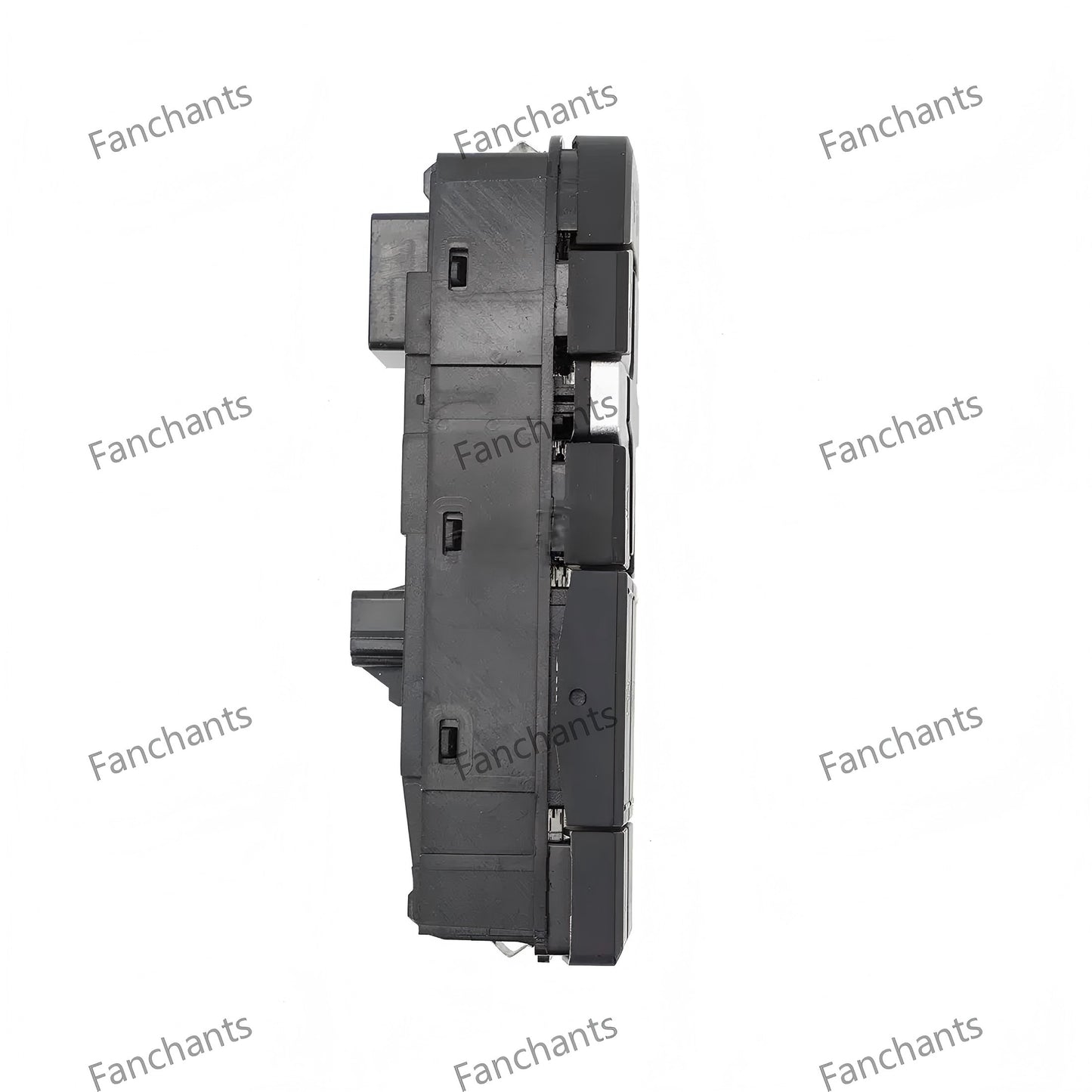

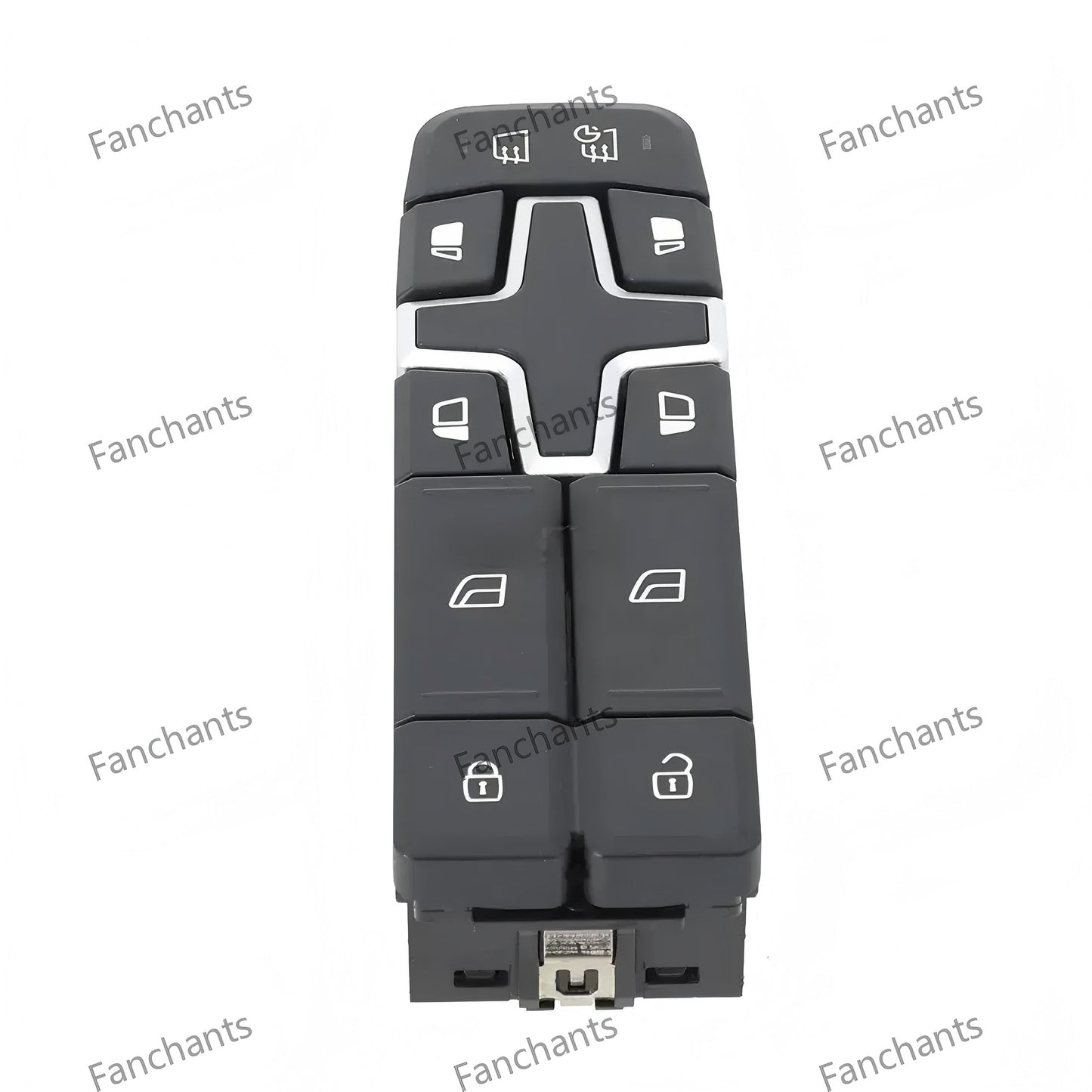

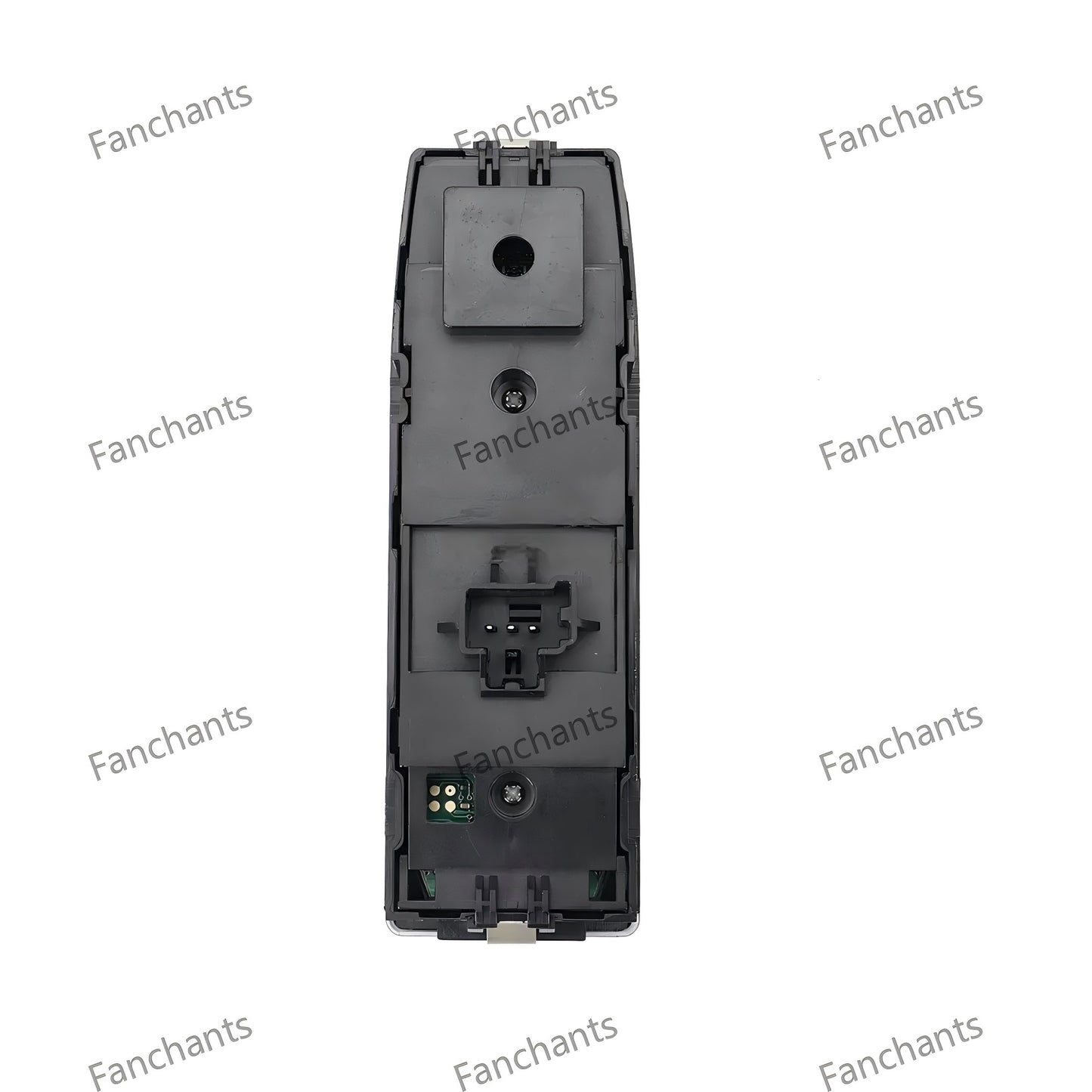

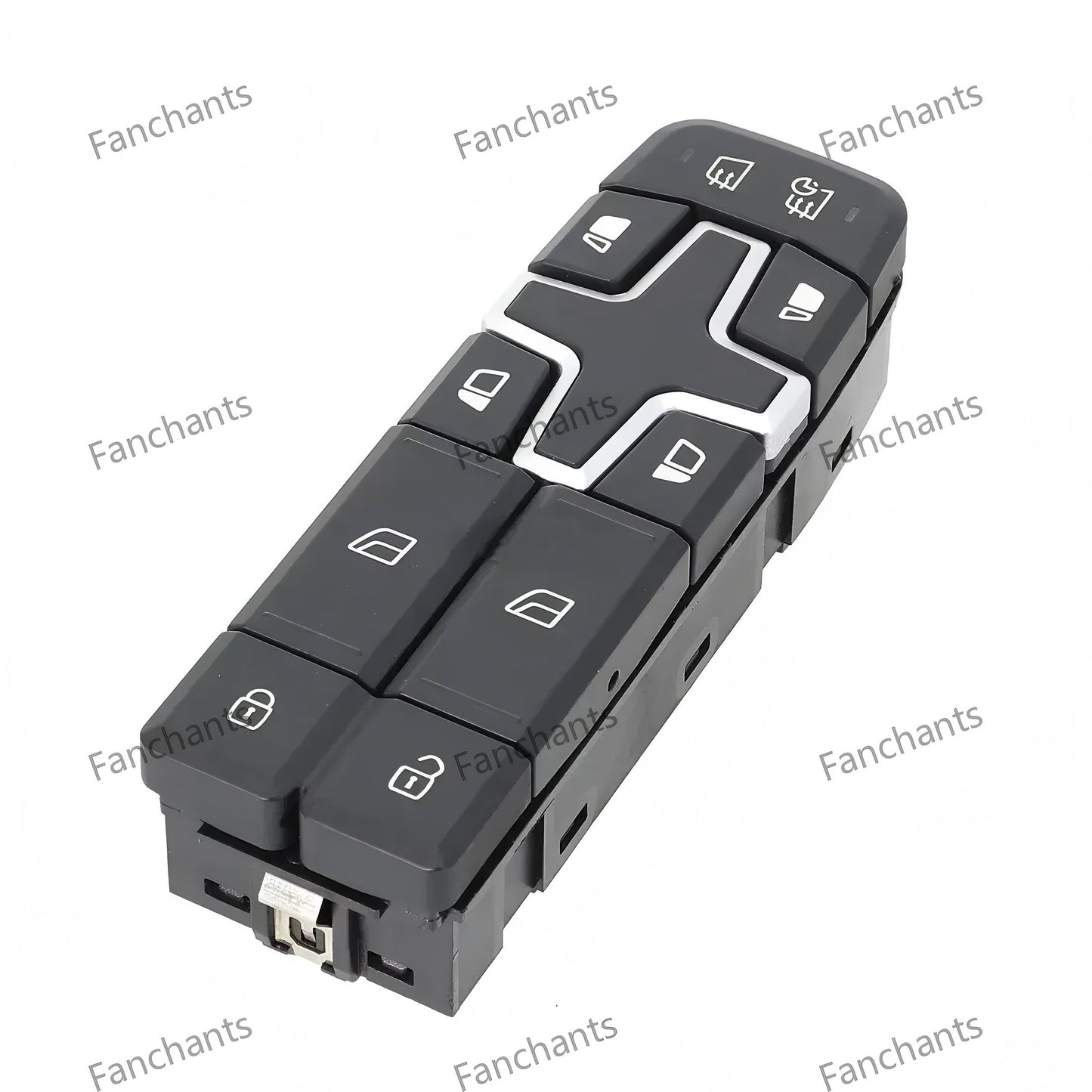

22154235 Control Panel Driver Interface Module
Euro 6 Compliant Operator Console
The 22154235 Control Panel assembly (22154235, 21196870) integrates with Volvo's Euro 6 emission control systems through proprietary CANbus protocols. Reinforced polymer housing withstands cabin temperature fluctuations from -40°C to 105°C. Dual-layer membrane switches provide tactile feedback for gloved operation in FMX construction vehicles. Anti-static coating prevents dust accumulation in NH series mining applications. Modular design allows independent replacement of switch clusters without full assembly removal. Integrated LED backlighting (RGB adjustable via VECU) matches Volvo's driver information system. Vibration-dampened mounting system protects internal circuits in FH16 750HP models. Sealed connectors meet IP69K standards for pressure washing resistance. Quick-release tabs enable 10-minute installation in FM 9/10/12 cabs. Zinc-aluminum alloy framework prevents warping under continuous use. Compatible with Volvo's I-Shift transmission interface protocols through J1939-13 compliant data links.
Volvo Truck Application Matrix
Primary Fitments
- ▶ FH Series Euro 6 (2012-2026)
- ▶ FM 9/10/12 (2010-2024)
- ▶ FMX 16 (2016-2025)
- ▶ NH12/NH16 (2015-2023)
Extended Compatibility
- ▶ I-Shift Automated Transmissions
- ▶ VDS 4.5+ Diagnostic Systems
- ▶ Dynamic Steering Packages
Certified replacement for original modules with ECE R10 electromagnetic compliance.
Technical Specifications
- ▶ IP69K Ingress Protection
- ▶ 9-36V DC Input Range
- ▶ 500mA Max Current Draw
Construction Details
- ▶ Glass-Filled Nylon Housing
- ▶ Gold-Plated Contacts
- ▶ 8-Pin AMP Superseal Connector
Compatible with OE: 22154235, 21196870 for Volvo FH/FM/FMX/NH Series 2010-2026
