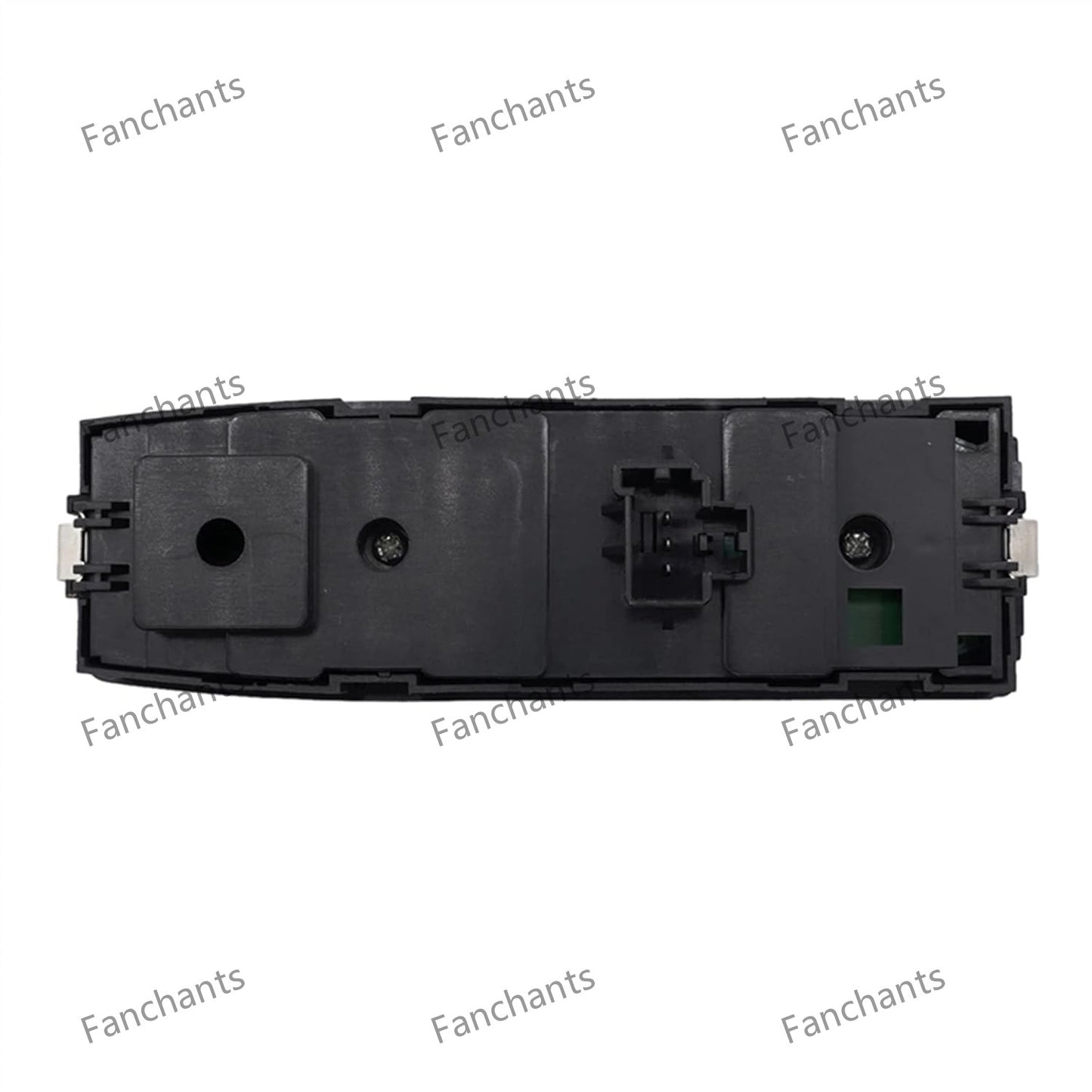

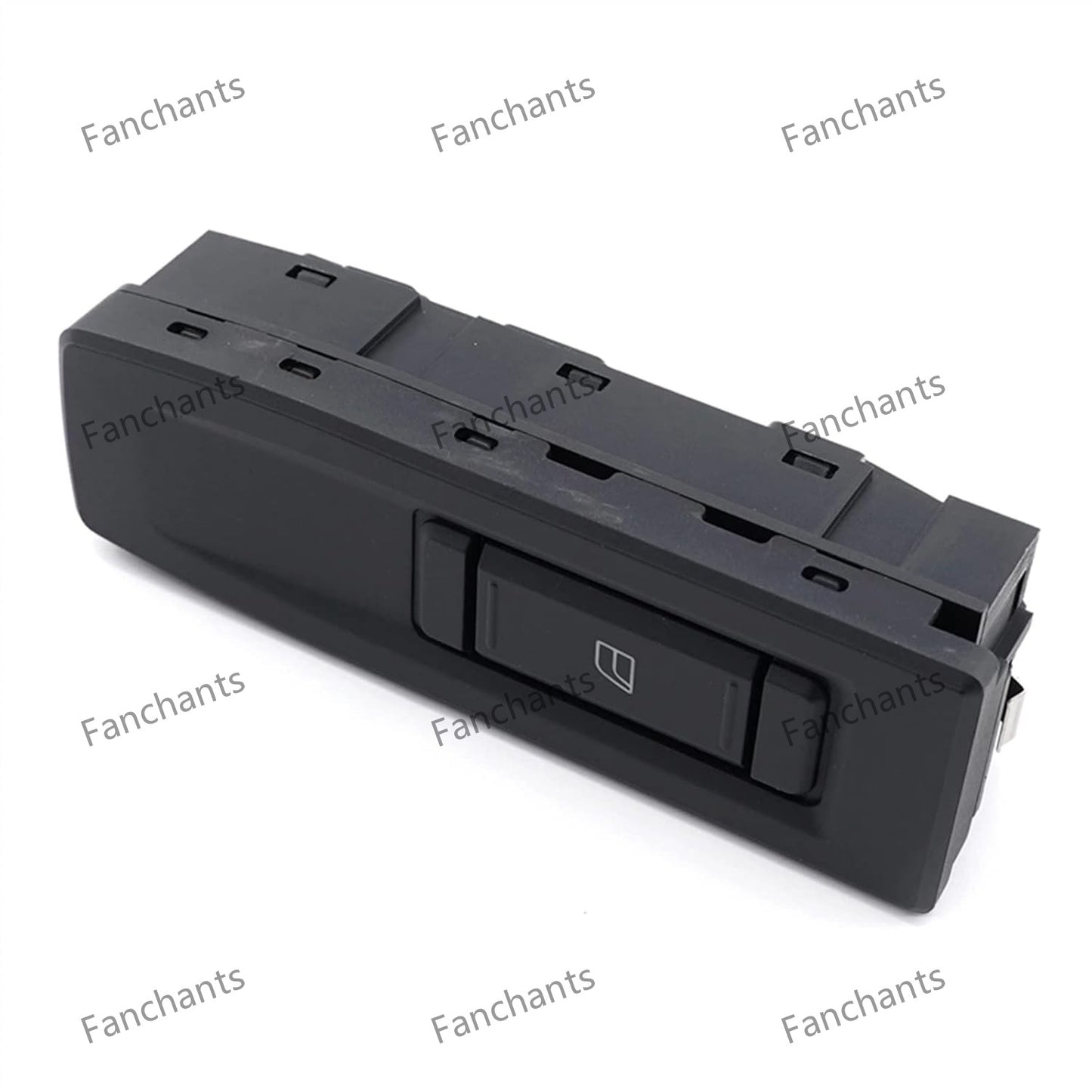

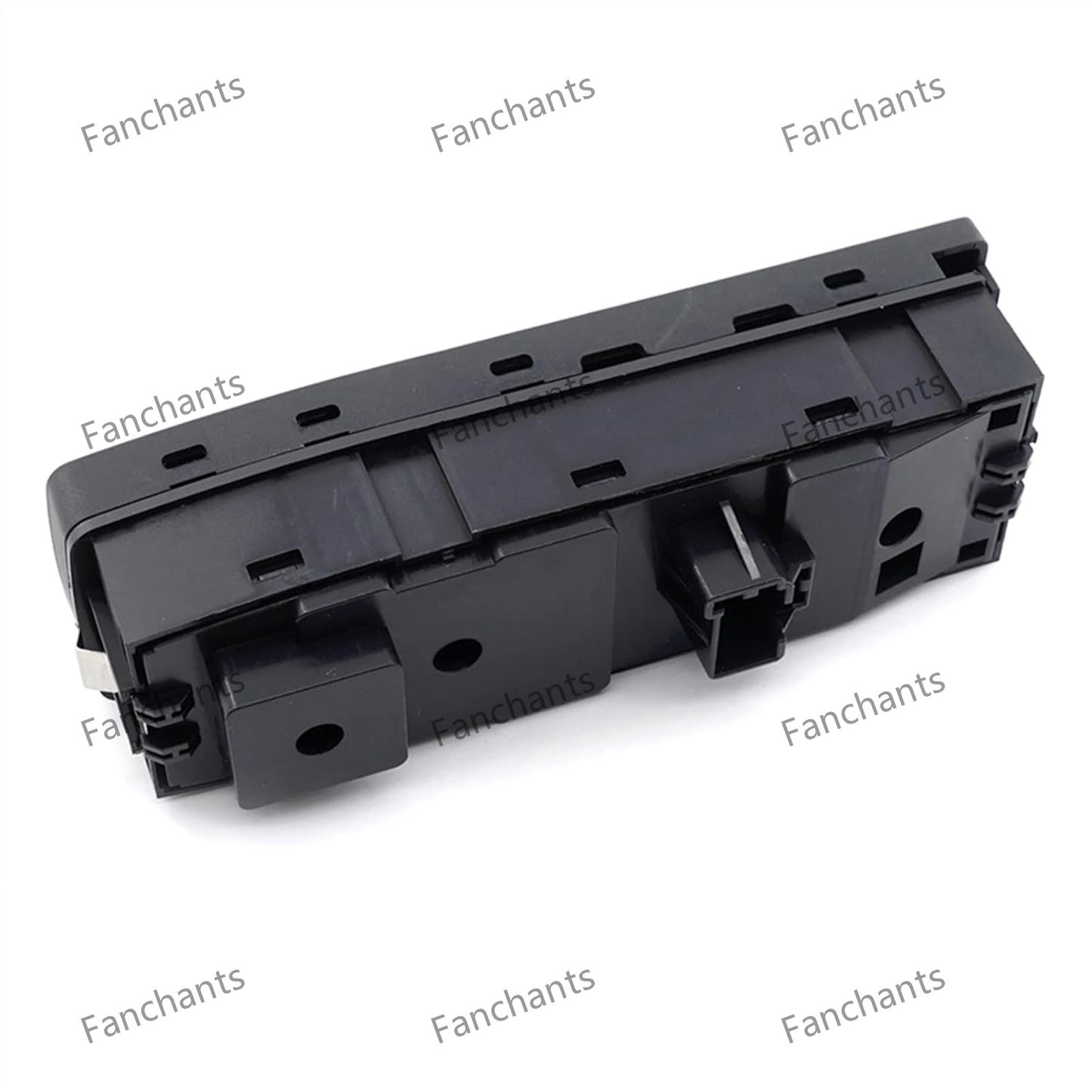

22154240 Control Panel Passenger Side Interface
Passenger Side Switch Integration Module
The 22154240 Control Panel assembly (22154240, 14490164, 21196873) features precision-engineered window/door controls for Volvo's F-Series cabs. Die-cast zinc housing withstands 200N impact resistance per ECE R94 standards. Dual-circuit membrane switches prevent electrical interference in FMX off-road conditions. Integrated moisture barriers protect contacts in NH series mining environments. Quick-disconnect terminals enable tool-free maintenance for FM 9/10/12 models. Anti-reflective coating maintains switch visibility under direct sunlight. Vibration-isolated mounting system compatible with FH16 750HP powertrains. Gold-plated connectors ensure stable current flow (9-32VDC input range). Modular design allows individual switch replacement without full assembly removal. Sealed rotary encoder meets IP67 standards for dust/water resistance. Compatible with Volvo's Sensus Infotainment system through CAN 2.0B protocol. Thermoplastic blend housing resists cabin cleaning chemicals without discoloration.
Volvo Truck Compatibility Matrix
Core Applications
- ▶ FH Series (2005-2026)
- ▶ FM 9/10/12 (2005-2024)
- ▶ FMX 16 (2016-2025)
- ▶ NH12/NH16 (2015-2023)
System Integration
- ▶ Electric Window Regulators
- ▶ Central Locking Systems
- ▶ Mirror Adjustment Modules
Certified replacement meeting E-Mark (R10) electromagnetic compatibility requirements.
Technical Specifications
- ▶ IP67 Environmental Protection
- ▶ 2.8mm Actuation Travel
- ▶ 100,000+ Cycle Durability
Construction Features
- ▶ Zinc-Aluminum Alloy Frame
- ▶ Silicone-Sealed Contacts
- ▶ 10-Pin Deutsch Connector
Compatible with OE: 22154240, 14490164, 21196873 for Volvo F-Series 2005-2026 Models
