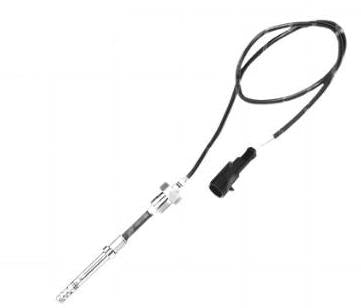

PRECISION THERMAL MONITORING SOLUTION 504095152 IVECO SCR Sensor
Designed specifically for IVECO SCR aftertreatment systems, the 504095152 sensor integrates aluminum oxide ceramic probe with metal-encapsulated ABS housing compliant with ISO 16750-3 vibration standards. The 50g optimized component delivers OEM-grade thermal tracking for Euro VI/EPA Tier 4 Final emission control systems.
Laser-welded thermocouple junction achieves ±1.8% measurement consistency per IVECO ETS 5500 specifications. Triple-shielded wiring withstands 25G shock loads across 250-850°C operational spectrum. Hexagonal mounting flange ensures gas-tight sealing following IVECO WSM 88.60 installation protocols.
ENGINEERING PARAMETERS
- ▶ Probe material: Alumina-Titania
- ▶ Response time: <85ms
- ▶ Operational limit: -40°C~950°C
- ▶ Thread spec: M18×1.5-6g
- ▶ Output type: Type K thermocouple
- ▶ Ingress protection: IP68/IP69K
VEHICLE INTEGRATION PROFILE
Direct replacement solution for OE 504095152 in IVECO UltraSCR architectures. Mounting interface conforms to IVECO WSM 45.95 dimensional tolerances. Signal characteristics match IVECO FPT Cursor 9 engine management parameters. Thermal profiling aligns with IVECO EMC 6600 requirements for selective catalytic reduction optimization.
