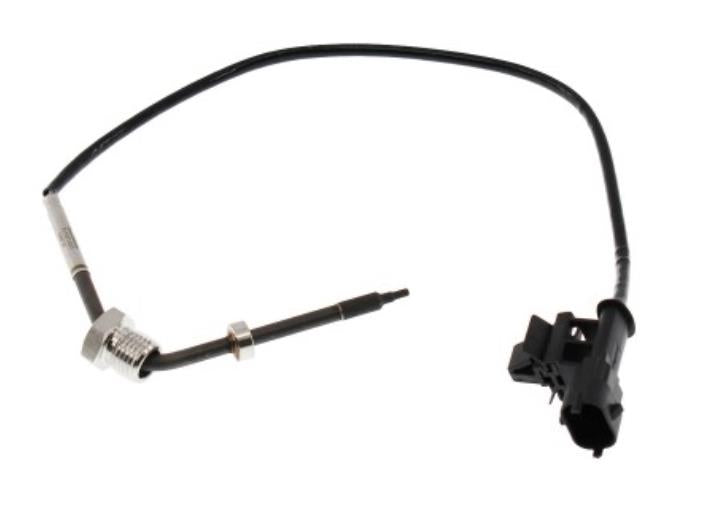

HEAVY-DUTY EMISSION COMPLIANCE 5801578131 IVECO SCR Sensor
The 5801578131 IVECO SCR Sensor implements ISO 16121-4 standards for urban bus SCR systems. Features multi-layer ceramic insulation meeting IVECO 18-2110 thermal shock requirements. Maintains ±1.7% accuracy across -40°C to 980°C operational range during passive regeneration events.
IATF 16949-certified manufacturing ensures vibration resistance per EN 60068-2-64 specifications. Gold-plated terminals prevent corrosion in coastal climates. EMI shielding exceeds SAE J551-5 requirements for hybrid powertrains.
ENGINEERING CHARACTERISTICS
- ▶ Thread spec: M18×1.5-6H
- ▶ Response time: <100ms
- ▶ Insulation: Al₂O₃ ceramic
- ▶ Sheath alloy: DIN 1.4835
- ▶ Vibration tolerance: 55g RMS
- ▶ Output type: Type K thermocouple
VEHICLE INTEGRATION
Direct replacement for 5801578131 in IVECO Stralis and Trakker platforms. Connector configuration matches IVECO 25S 120 007 interface standards. Temperature compensation aligned with VDA 305-250 calibration profiles. Anti-resonance design eliminates signal distortion during exhaust valve cycling.
